pulse jet valve design ,goyen pulse valve

Product Information
Customer Reviews

Material: Aluminium alloy

Certification: CE, CQC

Availability: OEM

Delivery Time: 7 days

Supply Ability: 300 PCS/Week

Product Details

AIRWOLF's pneumatic parts supplier has excellent performances by virtue of the following excellent details.AIRWOLF has professional production workshops and great production technology. pneumatic parts supplier we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.

Company Advantages
1. The specifications of AIRWOLF goyen pulse valve are ensured by finest techniques.
2. The product is characterized by high performance and stable quality.
3. Our professional and technical personnel supervise the quality control throughout the production process, which greatly guarantees the quality of the products.
4. AIRWOLF CO, LTD plays a major role in exporting high quality pulse jet valve design every year.
5. AIRWOLF CO, LTD well exploits its advantages in technology and goyen pulse valve to produce high-grade pulse jet valve design .

Detailed Description

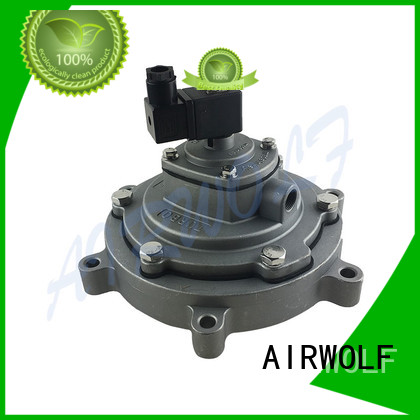

It's a normal closed double diaphragm dust removal pulse valve. These valves, used for cleaning filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and flanged tank. Like traditional model, with threaded and coupling connection, activating divided into two types:Electronic control type and Air control type.

Structure

◈Coil+Connector:BH10...V/50-60Hz

◈Screws+Washer:VTE6x +VROS6

◈Pole assembly:GPC 10

◈Cover:TCOP 25

◈Cover remote operate:TCOP25FM

◈Screws+Washer:VTE10x25+VROS10

◈Spring:TMOL40

◈Main diaphragm:M75

◈Body:TCOR75FLQ - TCOR100FLQ

◈O-Ring:OR 177 17x6,99 - OR 100 17x5,33

Features

part.1

The pulse valve is controlled by a pilot valve such as electromagnetic or pneumatic, and can open and close the diaphragm valve of the high-pressure gas source to generate a pulse.

part.2

The pulse valve is the main component of the bag filter, which is sprayed more than 1 million times.

part.3

The pulse valve is a valve that relies on the airflow through the air resistance and the delay of the air volume to make the input long signal become a pulse signal.

part.4

Carton pack for easy transport and protection of the valve body.

Failure and repair

◈Spring damage, pulse valve spool on the spring is easy to damage, resulting in the appearance of the pulse valve to blow air into the nozzle for a long time, the treatment is to replace the spring.

◈Spool fouling, because the intake is not clean, resulting in fouling accumulation in the spool, resulting in the appearance of the nozzle is a long-term intake or get electricity after the pulse valve does not act, the way is to clean the spool.

◈The diaphragm is damaged, after long-term work, the diaphragm is prone to fatigue, oxidation, etc., resulting in the appearance of the pressure relief port long-term gas, pulse valve does not work, the treatment is to replace the diaphragm

Advantages:

◈Small resistance, good circulation, expanding the scope of use of gas pressure.

◈Super Long Life.

Company Features
1. AIRWOLF is dedicated to offering the reliable pulse jet valve design and considerate service.
2. AIRWOLF CO, LTD has complete product lines and advanced testing facilities.
3. AIRWOLF strives to establish a technological advantage through teamwork and innovation. Get quote! AIRWOLF CO, LTD has initiated the construction of corporate culture system including goyen pulse valve. Get quote!
