double acting pneumatic cylinder | Pneumatic air cylinders

Product Information
Customer Reviews

Material: Aluminum alloy

Certification: CE

Availability: OEM

Delivery Time: 5 Days after payment

Start Port: NINGBO

Supply Ability: 1000pcs/week

Enterprise Strength

AIRWOLF actively adopts customer suggestions and continuously improves the service system.

Product Details

Next, AIRWOLF will present you with the specific details of pneumatic parts supplier.Under the guidance of market, AIRWOLF constantly strives for innovation. pneumatic parts supplier has reliable quality, stable performance, good design, and great practicality.

Company Advantages
1. The production of AIRWOLF double acting pneumatic cylinder has been optimized. It is produced with the help of modern IT-based processes such as the solidification simulation.
2. The product has to go through rigorous testing procedures which are conducted by our testing personnel before delivery. They are responsive to make sure that quality is consistently at its best.
3. This product is internationally renowned for its superior performance and long life.
4. People will find that the high-quality glides of drawers can withstand years of heavy use with the function of supporting the smooth and silent opening and closing.

Detailed Description

The RBC series Self-compensation shock absorber are designed with high hardness stainless steel shaft, the shock absorber has better impact and corrosion resistance, and it can work under adverse conditions. The compact structure leads to high max. absorbed energy, and the special oiling process leads to stable shock absorbing. The outer body of integrated structure is treated by QPQ, which has optimum corrosion and wear resistance and can withstand high pressure; it is easy to install and adjust for all threaded outer body which has good heat dissipation.

Description

◈Ambient temperature range (°C): –10 to 80 (No freezing)

◈Collision speed (m/s):0.05 to 5.0

◈ Stroke absorption (mm):6

◈Max. energy absorption (J): 2.94

◈Max. operating frequency ∗(cycle/min):80

◈Max. allowable thrust (N):245

Advantages

part.1

In order for the shock absorbers to operate accurately for long hours, it is necessary to select a model that is well-suited to your operating conditions. If the impact energy is smaller than 5% of the maximum energy absorption, select a model that is one class smaller.

part.2

Specifications and operational instructions

Ensure that the collision speed, thrust, operation cycle, the ambient temperature
and atmosphere fall within the specifications.
∗Be aware of the min. installation radius in the case of rotating impacts.

part.3

Using the equation suitable for the classification of impact.

part.4

Taking into consideration the corresponding weight of the impacting object Me, calculated using Data D and collision speed υ, check provisional model compatibility with the condition of application. If this is satisfactory, then the said provisional model will be the applicable one.

Attention
1. It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft.
2. The surface of the shaft should not be covered with sewage or dirty oil, and the shaft must operate in a clean environment.Otherwise, it will increase the probability of product leakage and reduce the service life of the product.
3. It is strictly prohibited to spray paint on the pipe teeth and axis, otherwise it will affect the heat dissipation effect and oil leakage.

Company Features
1. AIRWOLF CO, LTD has been focused on air cylinder industry since many years ago and achieved great success.
2. We have brought together a large team of professionals with extensive experience. They enable us to meet the demanding needs of customers all around the world.
3. By cause of accurate market position, AIRWOLF dedicates itself into the design and sales of pneumatic cylinder . Ask! AIRWOLF CO, LTD is a pneumatic air cylinders enterprise which specializes in designing and developing new fashion of double acting pneumatic cylinder . Ask! Constant innovation is indispensable for long-term development of AIRWOLF CO, LTD. Ask!

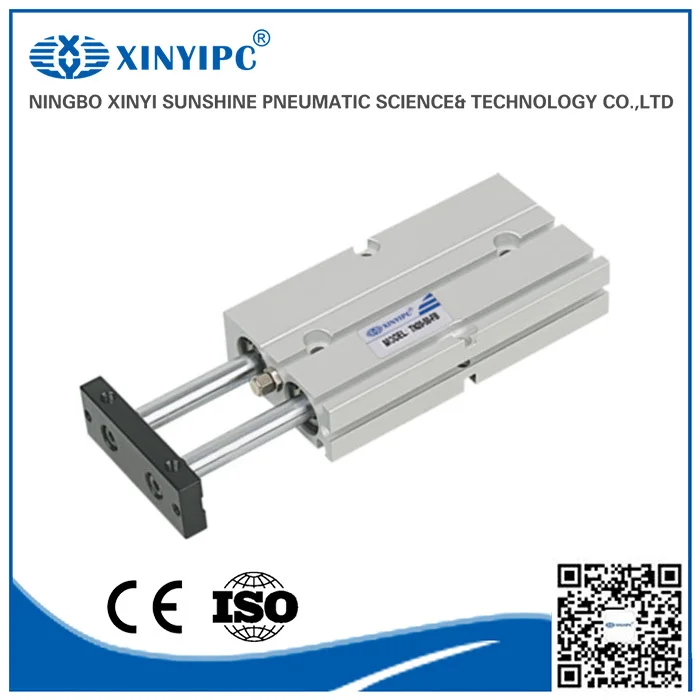

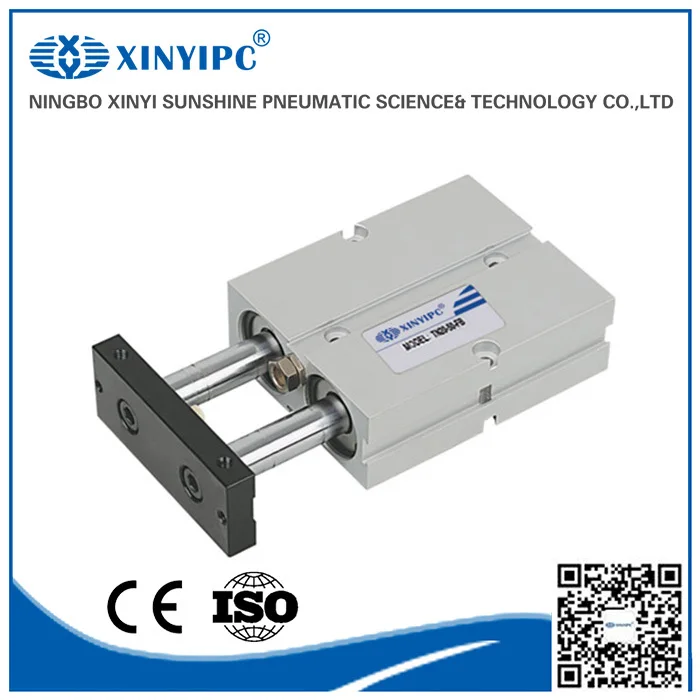

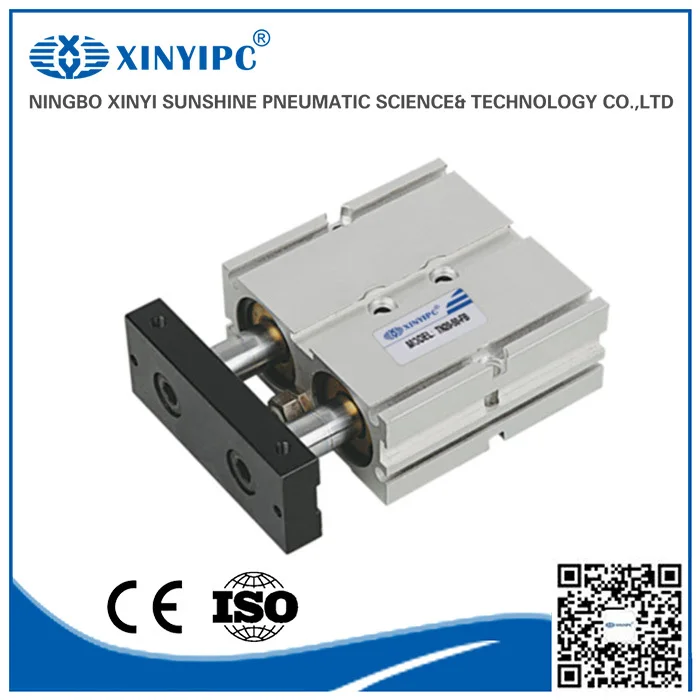

TN32 double acting double piston rod pneumatic air cylinder

Product pictures
