Product Information
Feedback

Material: Aluminum Alloy

Certification: CE

Availability: OEM

Delivery Time: 1-3 work days

Start Port: Ningbo/Shanghai

Supply Ability: 10000 PCS/Week

Application Scope

With wide application, custompneumaticcomponents is suitable for various industries. Here are a few application scenes for you.AIRWOLF insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.

Company Advantages
1. AIRWOLF pneumatic manual valves has to go through the following inspection processes. It is checked for its appearance like surface defects, specification consistency, mechanical performance, function realization, etc.
2. This product is attracting attention due to its durability. It can withstand hundreds of repeatability and reproducibility without any system failure.
3. The product features the desired electrical safety. During its operation, it is less likely to appear problems like discharge, surge current, and current leakage.
4. Having been qualified with quality system certification, pneumatic manual valves meets the quality standards.

Detailed Description

This product cannot be used for applications in which the pressure must be sealed because there will be a slight leakage.

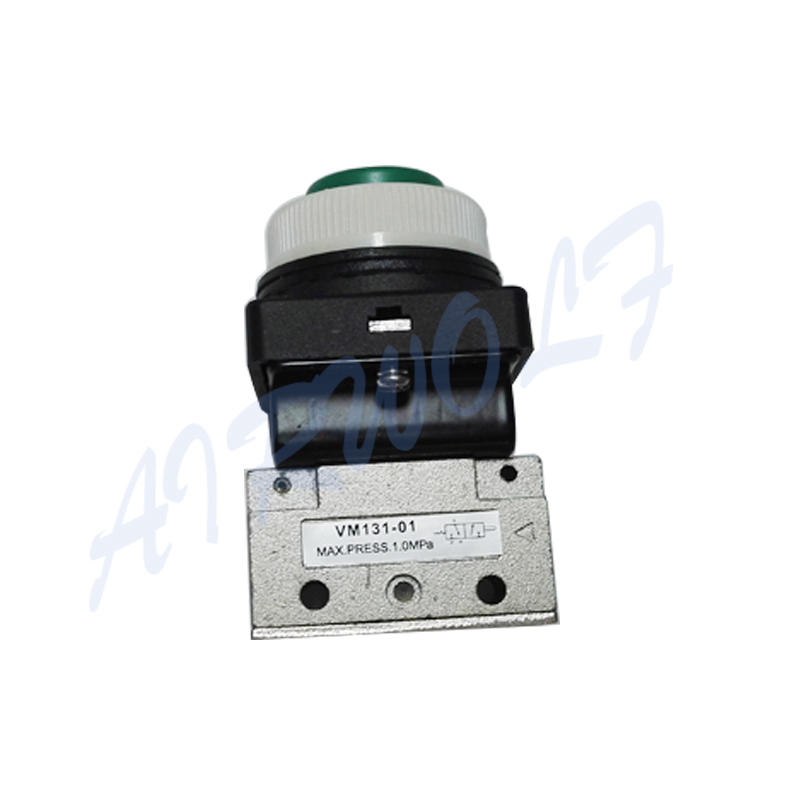

AIRWOLF mechanical pneumatic manual valves push bulk production-1

Technology

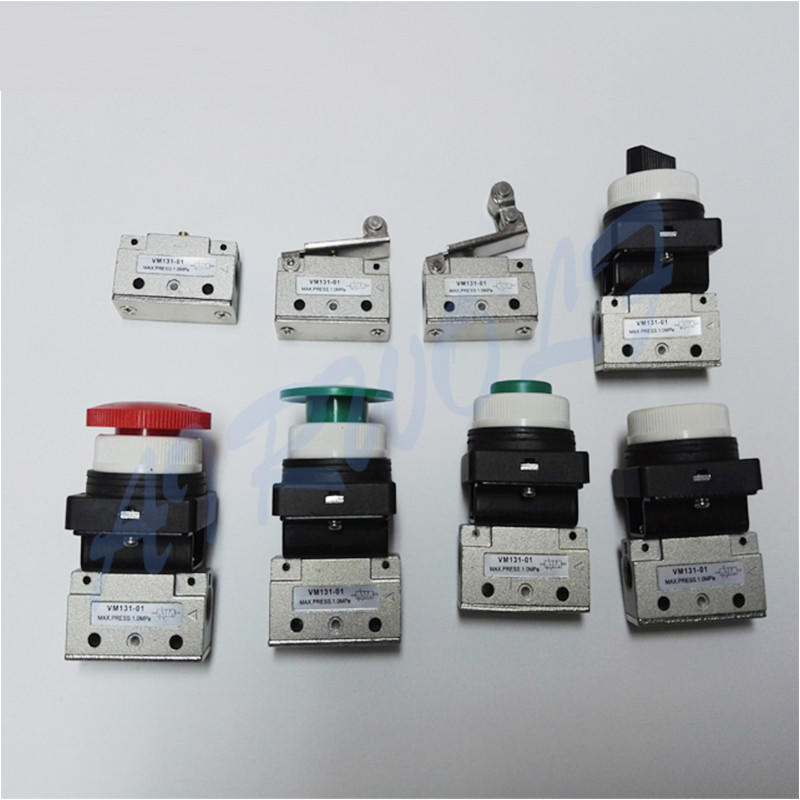

◈ Model: VM131-01-00 VM131-01-01 VM131-01-02 VM131-01-37 VM131-01-30 VM131-01-32 VM131-01-33 VM131-01-34

◈ Working media: Air

◈ Operating pressure: -100kPa to 1.0MPa

◈ Effective area: 2.5mm²

Features

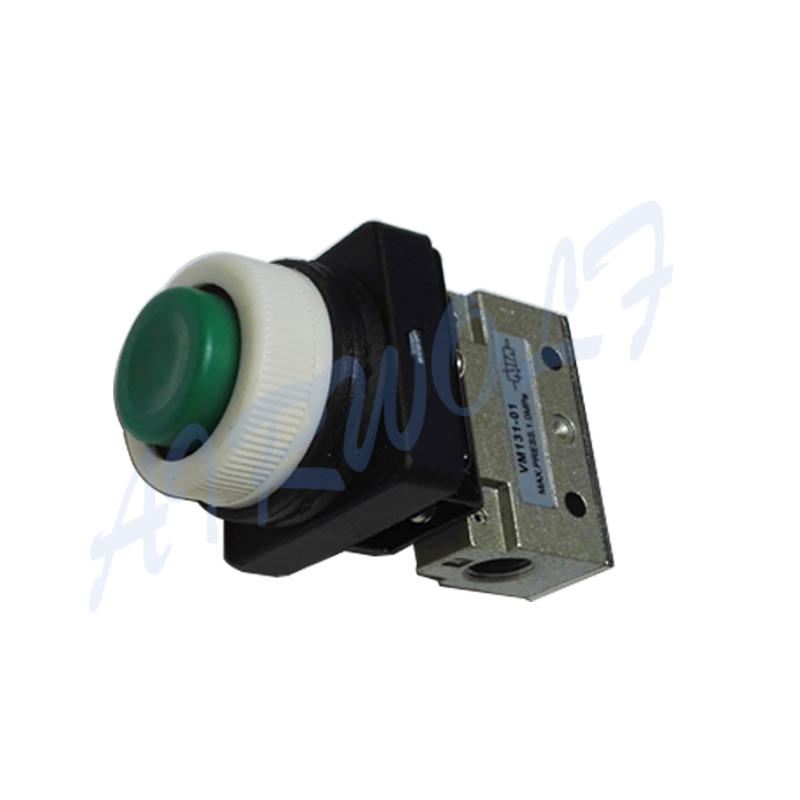

AIRWOLF mechanical pneumatic manual valves push bulk production-2

part.1

Conditions for mechanical operation
Do not move the mechanical operation beyond the operating limit position, as this could damage the mechanical valve itself and lead to equipment malfunction.

AIRWOLF mechanical pneumatic manual valves push bulk production-3

part.2

Actuator Stroke
Operate the mechanism within the stroke range that has been obtained through the formula given below. (Do not move beyond the operating limit position.)
Operating stroke: P.T. + 0.5 X O.T.

Specification

Piping	Side piping	Botton piping
Fluid	Air
Operating pressure	-100kPa to 1.0MPa
Ambient and fluid temperature	-5 to 60°C (No freezing)
Effective area (Nl/min)	2.5mm² (124.81)
Recommended lubricant	Not required/Turbine oil #1 (lSO VG32)
Port size	1/8	M5X0.8
Weight (Basic)	95g	110g

AIRWOLF mechanical pneumatic manual valves push bulk production-4

AIRWOLF mechanical pneumatic manual valves push bulk production-5

AIRWOLF mechanical pneumatic manual valves push bulk production-6

AIRWOLF mechanical pneumatic manual valves push bulk production-7

AIRWOLF mechanical pneumatic manual valves push bulk production-8

AIRWOLF mechanical pneumatic manual valves push bulk production-9
