Company Advantages1. Cute outlook of pneumatic manual control valve helps it win the market. Airwolf Automation has got the certifications of EN60947 and ISO/TS16949
2. The product with a high cost performance is widely used in the market. Established in 2006, Airwolf Automation continues its commitment to offering excellent quality
3. The product can perform well in retaining natural color temperatures. A portion of the spectrum was added without affecting the luminous flux, making the color temperature closer to natural light. Airwolf Automation has developed a large customer base, covering over 230 countries
4. The product is not easy to bend. Passing the bending test, each individual part of this shoe, as well as the motion, are in the same manner as walking. Airwolf Automation has developed a wide distribution network in over 13 countries
5. Pen-on-paper feeling: a professional grade creative pen and a highly responsive screen are designed to provide a natural pen-on-paper feel. Airwolf Automation uses high-quality materials to ensure the long-term use of the products

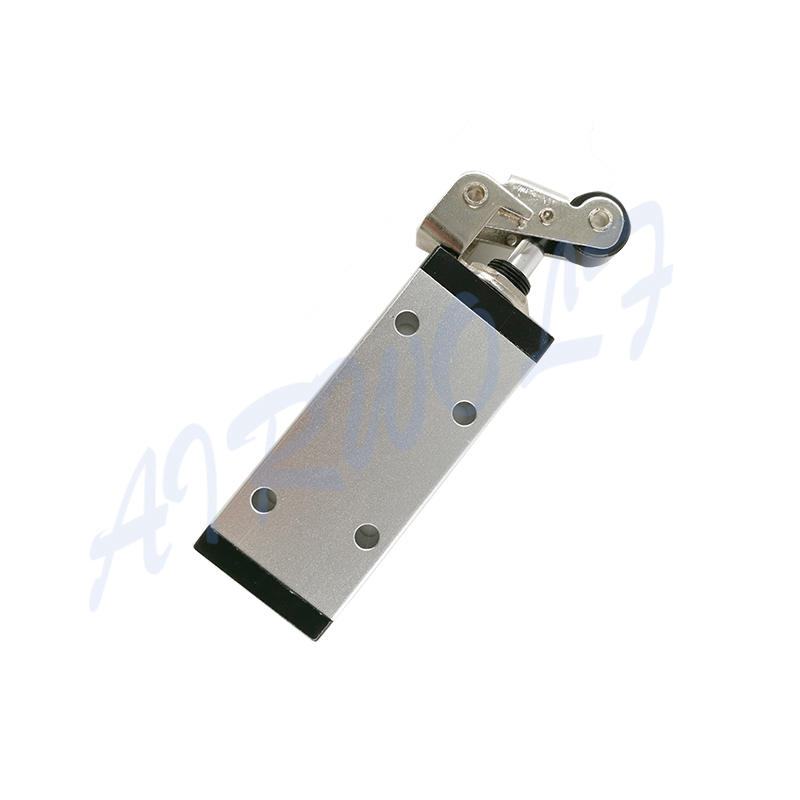

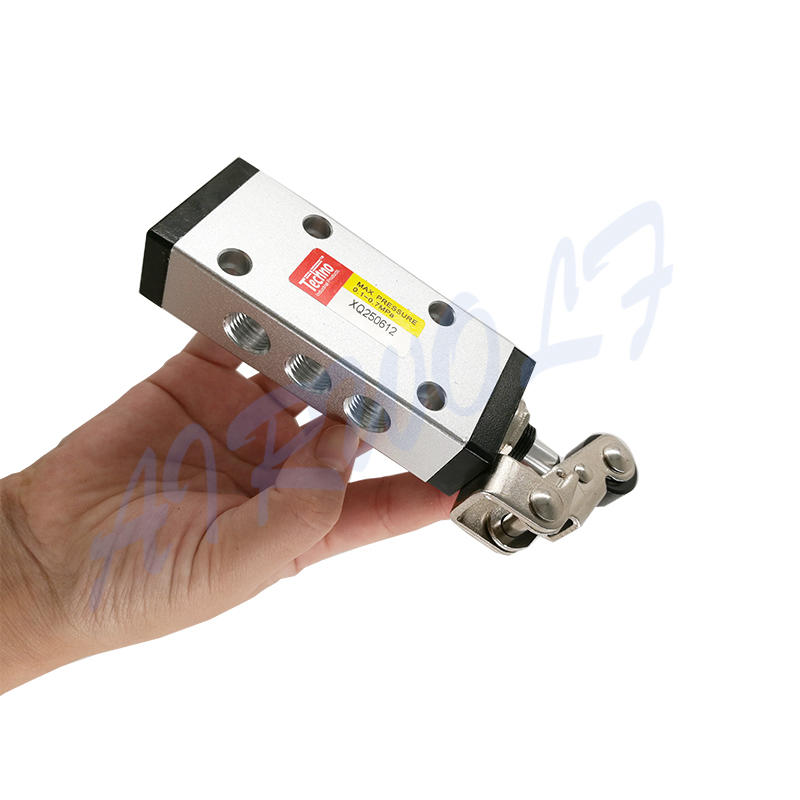

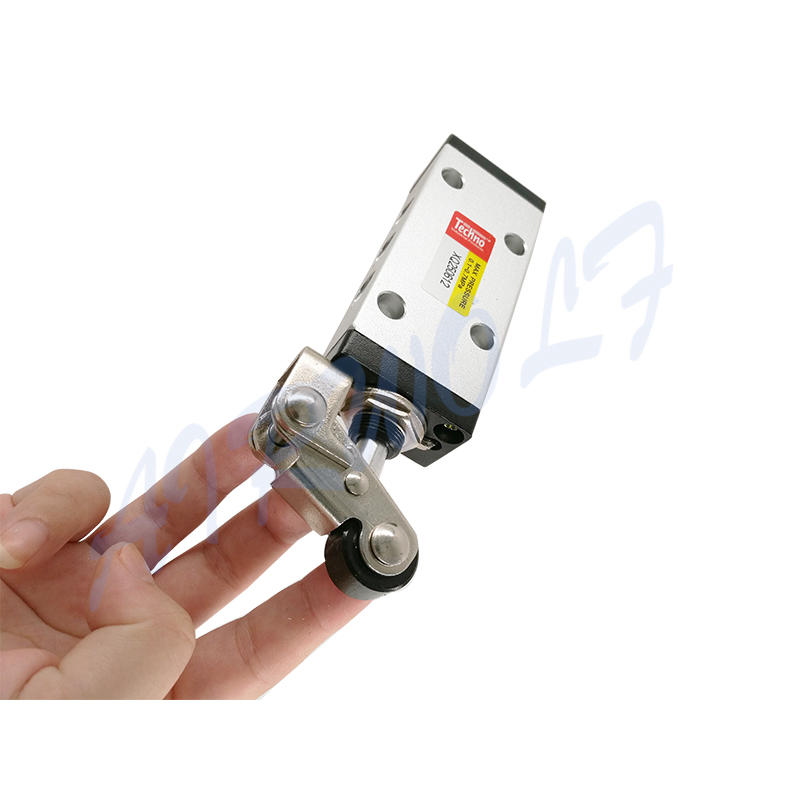

Manual valve is the control part of pipeline fluid conveying system. It usually use the externa forces from cams or rams to change the fluid flowing directions. ◈ Model: XQ250612 XQ230612
◈ Color: Slivery
◈ Fluid temperature: -10~+60℃
◈ Ambient temperature: 5~60℃
Feature
part.1
Manual Valve: This wheel or worm gear reducer can be set between the handwheel and the stem. If necessary, the universal joint and transmission shaft can also be used for long-distance operation.
part.2
When a mechanical valve is in stalled, the moving direction of the ram should be in angle against the valve and the plunger should be pressed down a S distance (the direction-changed stroke)
Specifications
| Model | Type | Port size | Nominal dia. | Operating force | Operating | Fluid | Ambient | Service life |
| mm | pressure | temperature | temperature |
| XQ230410 | 3/2 | G1/8 | 4 | 26N | 0~1.0MPa | -10~+60℃ | 5~60℃ | 10
million times |
| XQ230610 | G1/4 | 6 | 35N |
| XQ250410 | 5/2 | G1/8 | 4 | 30N |
| XQ250610 | G1/4 | 6 | 40N |
| XQ230411 | 3/2 | G1/8 | 4 | 26N |
| XQ230611 | G1/4 | 6 | 35N |
| XQ250411 | 5/2 | G1/8 | 4 | 30N |
| XQ250611 | G1/4 | 6 | 40N |
| XQ230412 | 3/2 | G1/8 | 4 | 16N |
| XQ230612 | G1/4 | 6 | 24N |
| XQ250412 | 5/2 | G1/8 | 4 | 19N |
| XQ250612 | G1/4 | 6 | 27N |
| XQ230413 | 3/2 | G1/8 | 4 | 17.8N |
| XQ230613 | G1/4 | 6 | 20N |
| XQ250413 | 5/2 | G1/8 | 4 | 21N |
| XQ250613 | G1/4 | 6 | 23N |
After-sale service
◈We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
◈Serves time
0:00 - 23:59
From Monday to Sunday
Packaging shipping
◈ If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
◈ By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
Company Features1. AIRWOLF CO, LTD is regarded as the better in push button pneumatic air valve industry. We have assembled a knowledgeable staff. Having the experience and skills to take projects from concept to completion, they make the company capable of meeting customer needs.
2. By combining our multinational expertise with our deep roots in diverse local cultures, we're continuing to provide a range of products to suit a wealth of consumers. We're also strengthening our strong relationships in the emerging markets.
3. Our knowledgeable project teams are a multi-skilled group, ranging from experienced engineers (some with over 10 years’ experience in the industry) to top designers, giving us the advantages of finishing the orders. AIRWOLF CO, LTD can provide OEM service for customers. Call!
