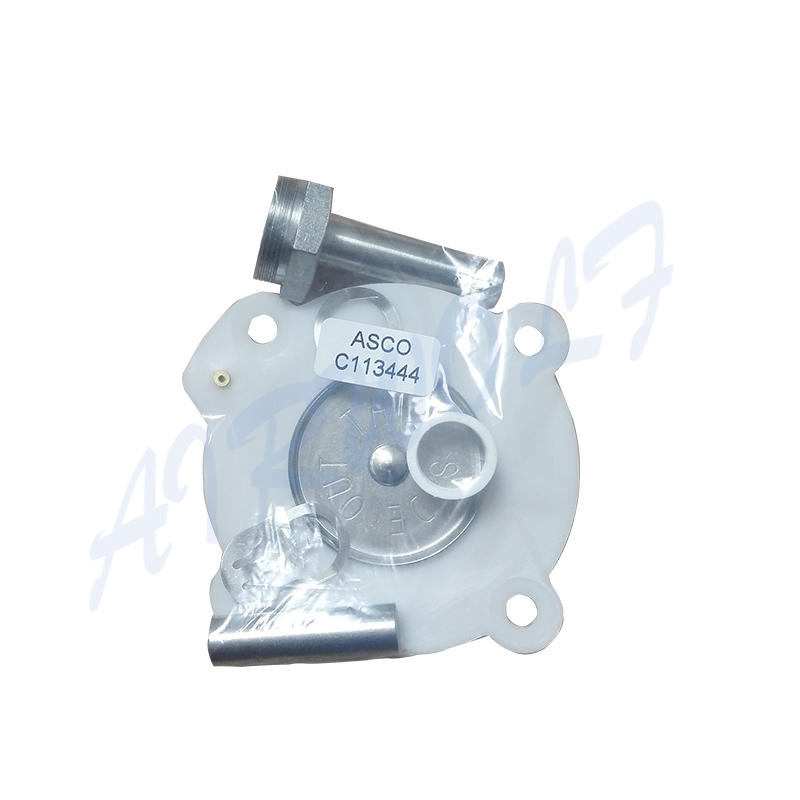

ASCO Type C113443 C113444 3/4 Inch 1 Inch Diaphragm Repair Kits

Product Information
Customer Reviews

Material: TPE, Nitrile, Viton

Certification: CE

Availability: OEM

Delivery Time: 1-3 work days

Start Port: Ningbo/Shanghai

Supply Ability: 10000 PCS/Week

Product Details

AIRWOLF's pneumatic parts supplier is perfect in every detail.AIRWOLF pays great attention to integrity and business reputation. We strictly control the quality and production cost in the production. All these guarantee pneumatic parts supplier to be quality-reliable and price-favorable.

Application Scope

With wide application, pneumatic components can be used in the following aspects.With rich manufacturing experience and strong production capability, AIRWOLF is able to provide professional solutions according to customers' actual needs.

Company Advantages
1. The production technique of AIRWOLF Nitrile Diaphragm repair kit is advanced and guaranteed.
2. Anti-yellowing is one of the biggest selling points of this product. The exclusive anti-yellowing treatment has been conducted on its surface material to enhance color fastness to perspiration.
3. Technical support and Nitrile Diaphragm repair kit will be provided by AIRWOLF CO, LTD for our air valve repair kit .

Detailed Description

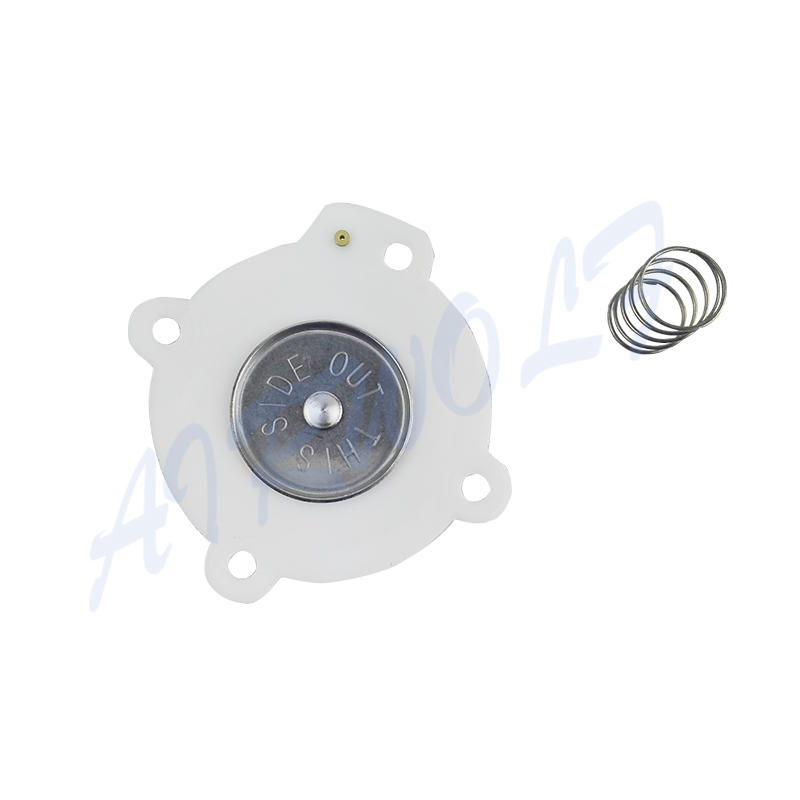

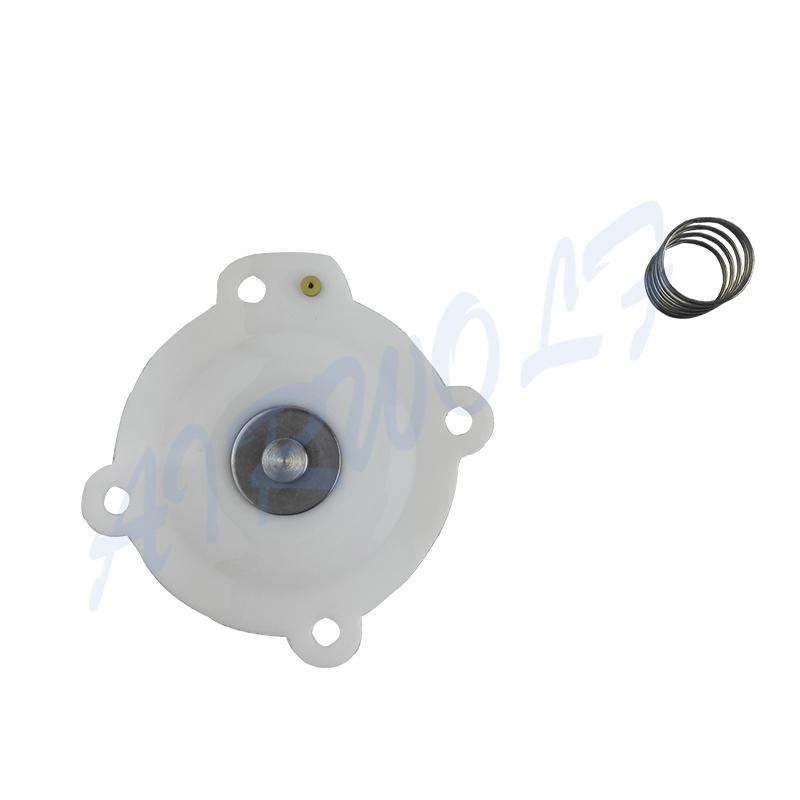

Pulse valve diaphragm repair kits are composed of two diaphragms and springs. Pulse valve diaphragm is the heart of electromagnetic pulse valve. The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

Specification

◈Diaphragm Material: Buna(NBR)/TPU

◈Color: Black and White

◈Working pressure: 0.05-1.0 Mpa

◈Working Temperature: -20ºC- +82 ºC

◈Lifespan:1 million cycles

Advantages

part.1

Good air tightness

part.2

Aging resistance

part.3

Long service life

part.4

Strong oil resistance

High temperature resistance

Maintenance

◈ Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.

◈ Diaphragm and pilot inspection should be conducted annually.

Ordering Code	Fitted Valve Code	Valve port size	Material
C113443	G353A041,G353042,	3/4", 1"	TPU / NBR
C113444	SCG353A043, SCG353A044	3/4", 1"	TPU / NBR
C113825	G353A045	1 1/2"	NBR /BUNA
C113826	G353A046	1 1/2"	NBR /BUNA
C113827	SCG353A047	1 1/2"	NBR /BUNA
C113685 C113686	SCG353A050,SCG353A051,G353A048,G353A049	2" , 2 1/2"	NBR /BUNA
C113928	SCEX353.060	3"	NBR /BUNA
