Detailed Description

The air-operated diaphragm pumps are constructed according to the state of the art and they are reliable. Imminent danger by operating error or misuse can lead to damages of properties and/or persons. The pumps are to be applied for the intended use and in a safety-related proper condition only, each person working on the air-operated diaphragm pumps concerning installation, start-up, handling or maintenance has to read this manual completely and in an attentive way and has to follow all mentioned procedures and safety notes.The basic configuration consists of two external side housings with a center housing between them. Each of the side housings contains a product chamber which is sealed against the center housing by a diaphragm. The two diaphragms are interconnected by a piston rod. Directed by an air control system, the diaphragms are alternately loaded with compressed air so that they move back and forth. In the first figure, the compressed air has forced the left-hand diaphragm towards the product chamber and displaced the liquid from that chamber through the open valve at the top to the discharge port. Liquid is simultaneously drawn in by the right-hand diaphragm, thus refilling the second product chamber.

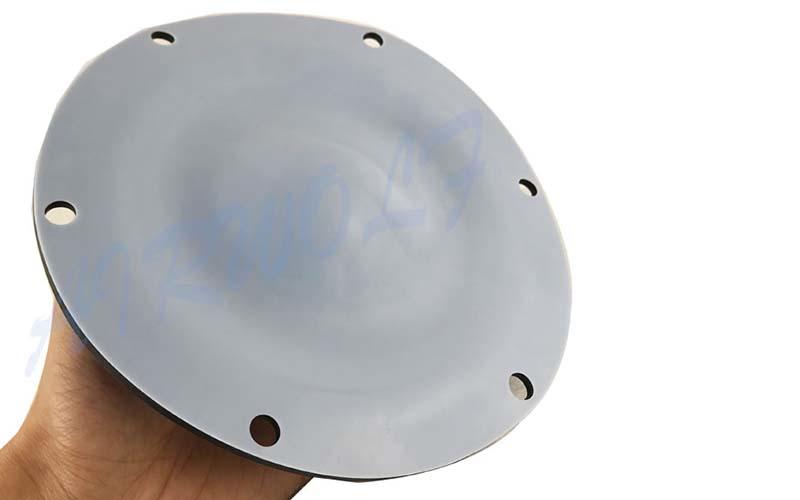

AIRWOLF high quality solenoid valve repair kit mecair paper industry-1

Specification

◈Max. particle size of solids - mm (inch):4 (0.16)

◈Max. driving and operating pressure - bar (psig):7 (100)

◈Max. operating temperature - °C (°F):80 (176)

◈Nominal port size Air connection:1/4“

Safety instructions

AIRWOLF high quality solenoid valve repair kit mecair paper industry-2

part.1

Installation, operation, and maintenance by qualified staff only.

AIRWOLF high quality solenoid valve repair kit mecair paper industry-3

part.2

Before start-up of the pump anyone should acquaint oneself with the explanations of the chapter troubleshooting. Only by this the defect quickly can be realized and eliminated in case of trouble. Problems which cannot be solved or with an unknown reason should be passed on to the manufacturer.

AIRWOLF high quality solenoid valve repair kit mecair paper industry-4

part.3

All wetted materials of the pump are appropriate for food-contact. A malfunction can however result in material contact to components of a pump that are not wetted during normal operation (e.g. air side parts in an AODDP or other parts in in rotational pump).Therefore, we recommended to discard a batch of sensitive media after any malfunction as usual for pumps.

AIRWOLF high quality solenoid valve repair kit mecair paper industry-5

part.4

Before any maintenance and service procedures arising on the pump or on the optional equipments, the complete installation has to be turned off and protected against accidental turn on. This is possible by a lockable emergency stop for the air supply of the pump. Additional a danger sign against restart should be attached.

AIRWOLF high quality solenoid valve repair kit mecair paper industry-6

part.5

Pressure tests of the plant a pump is included in may only be carried out with the pump disconnected from the pressure on both ports or by using the pressure the pump develops while operating. The load of a pressure in the plant may damage the pump.

AIRWOLF high quality solenoid valve repair kit mecair paper industry-7

part.6

In case of a diaphragm rupture, it might be possible fort he fluid pumped to intrude into the air side of the pump. In very adverse conditions - e.g. pressure within the fluid system during stopped air supply - the fluid might as well find its way into the air supply lines. To protect other devices like pulsation dampers or even pneumatic valves, it is recommended to protect the air supply line accordingly, e.g. via a non-return valve. This would as well avoid polluting the air supply line.
