Detailed Description

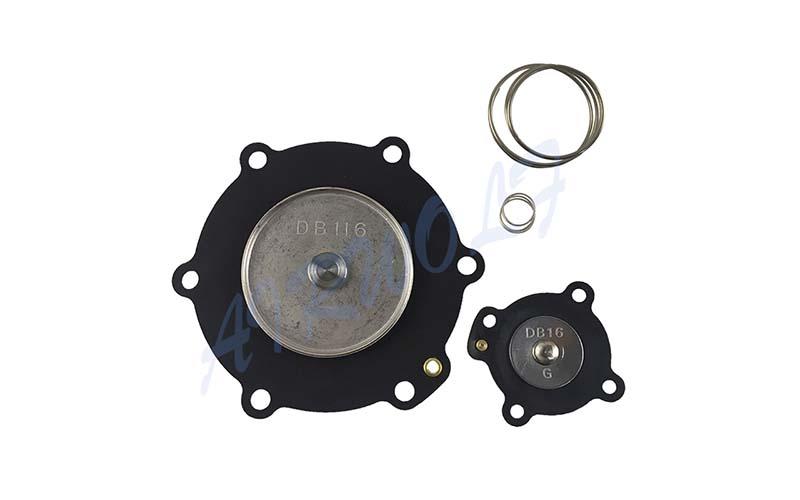

Pulse valve diaphragm repair kits are composed of two diaphragms and springs. Pulse valve diaphragm is the heart of electromagnetic pulse valve. It is one of the fittings for the normal operation of the valve body and the "switch" of the injection air circuit of the dust cleaning system of the pulse bag filter. It can easily ensure complete synchronization with other control components to control the injection of pulsed compressed air. The diaphragm is made of imported nitrile rubber. The injection life can reach 1 million times or use for 3 years. All the diaphragm components are inspected and qualified before entering the assembly line.

AIRWOLF green diaphragm valve repair kit norgren paper industry-1

Materials

◈Diaphragm: Nitrile

◈Spring: Stainless steel

Specifications

◈ Working temperature: -10~80℃

◈ Working pressure: 0.4~0.8 MPa

◈Color: Black

◈Medium: Air

Advantages

AIRWOLF green diaphragm valve repair kit norgren paper industry-2

part.1

Good air tightness

AIRWOLF green diaphragm valve repair kit norgren paper industry-3

part.2

Aging resistance

AIRWOLF green diaphragm valve repair kit norgren paper industry-4

part.3

Long service life

AIRWOLF green diaphragm valve repair kit norgren paper industry-5

part.4

Strong oil resistance

AIRWOLF green diaphragm valve repair kit norgren paper industry-6

part.5

High temperature resistance

Maintenance

◈ Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.

◈ Diaphragm and pilot inspection should be conducted annually.

Packaging & Delivery

AIRWOLF green diaphragm valve repair kit norgren paper industry-7

AIRWOLF green diaphragm valve repair kit norgren paper industry-8

◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.

◈Port: Ningbo/Shanghai

Structure&Performance

◈The diaphragm consists of one or more layers coated on both sides. Diaphragms of different materials can be manufactured according to the requirements of use. The working temperature and pressure range of the diaphragm itself depends on the type of rubber, fabric and structure. The diaphragm can work at -10~80℃, 0.4~0.8 MPa, and the fluororubber and silicone rubber diaphragm can work at -80~232℃.

Technical Requirement

AIRWOLF green diaphragm valve repair kit norgren paper industry-9

◈Because the diaphragm of pulse valve is a flexible mechanism which needs to open and close frequently to control the air flow, it requires good flexibility and as high sealing as possible.

Function

It is to control the oil pressure. Generally installed in the main oil circuit or back pressure oil circuit of shock absorber, to reduce the oil pressure impact when shifting and locking and unlocking, so as to keep the equipment running smoothly.

Working Principle

When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.

Applications

It is used in pulse bag filter and installed in pulse valve to block compressed air pipeline.
