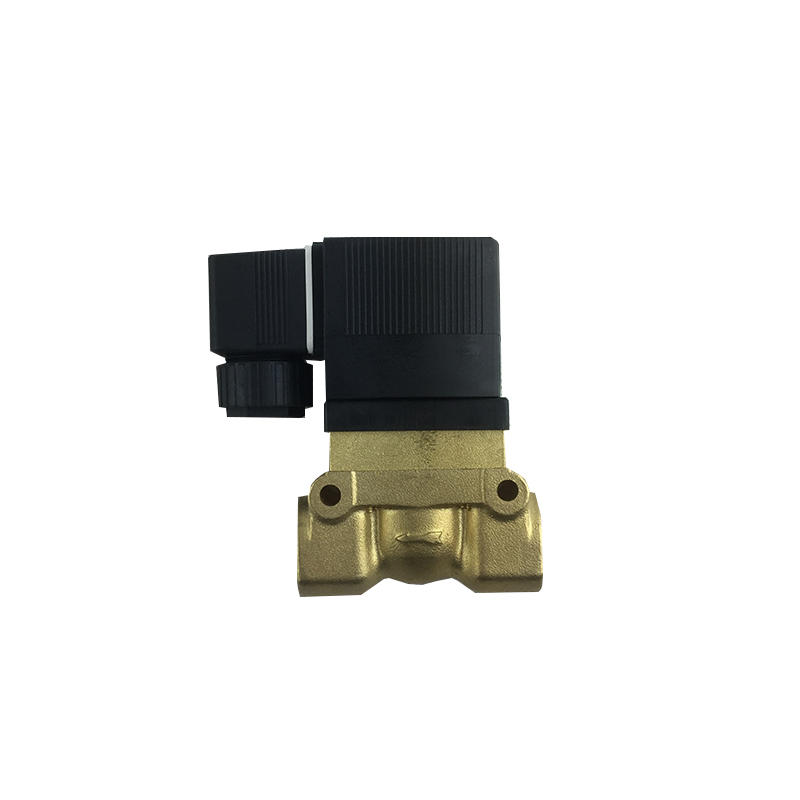

AIRWOLF customized solenoid valves spool liquid pipe

                            part.1

There are closed chambers in solenoid valves. There are through holes in different positions. Each hole connects different oil pipes. The piston is in the middle of the chamber and two electromagnets are on both sides. The magnet coil electrifying valve body on either side will be attracted to which side. By controlling the movement of the valve body, different oil discharge holes will be opened or closed. The oil intake holes are usually open. Pressure will enter different oil discharge pipes, and then through the pressure of oil to push the piston of the cylinder, the piston will drive the piston rod, the piston rod will drive the mechanical device. In this way, the mechanical movement is controlled by controlling the current cut off of the electromagnet.
