AIRWOLF customized pneumatic flow control valve water meter



Attribute definition

◈ Material:TPE or PTFE

◈Pipe size:DN25

◈Diaphragm size:1 inch

◈Pressure range:1.5-8 bar

◈Standard temperature:-40℃ +100℃

◈Model:846004001

◈Lifespan:1 million cycles



part.1

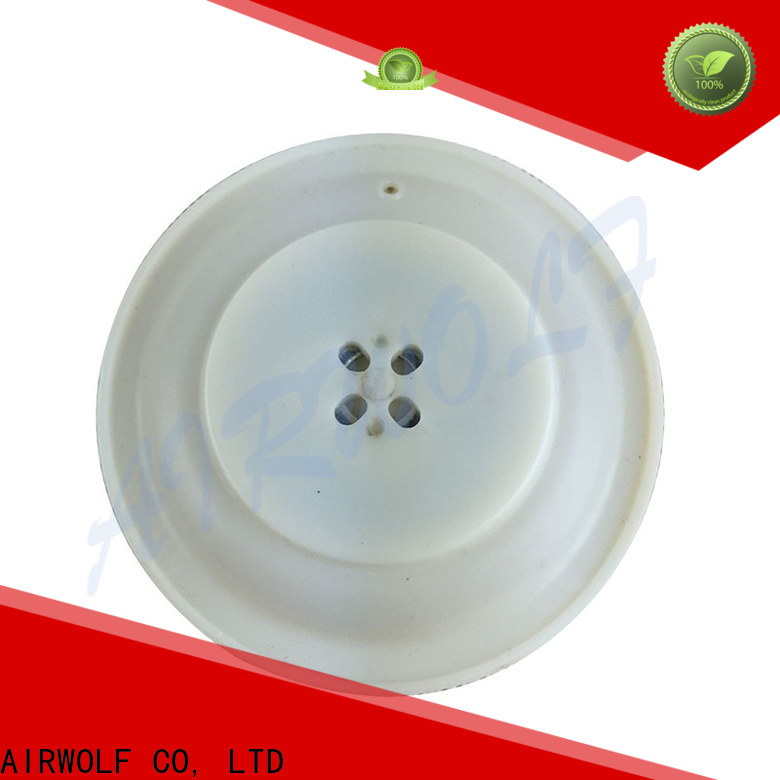

Autel 846004001 repair kit has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.



part.2

The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions.



part.3

The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications.



part.4

Color:White,1:1 design with original design.



◈The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.

◈The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications.

◈We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.

◈Integral pilot operated valves satisfy all relevant EC directives.
