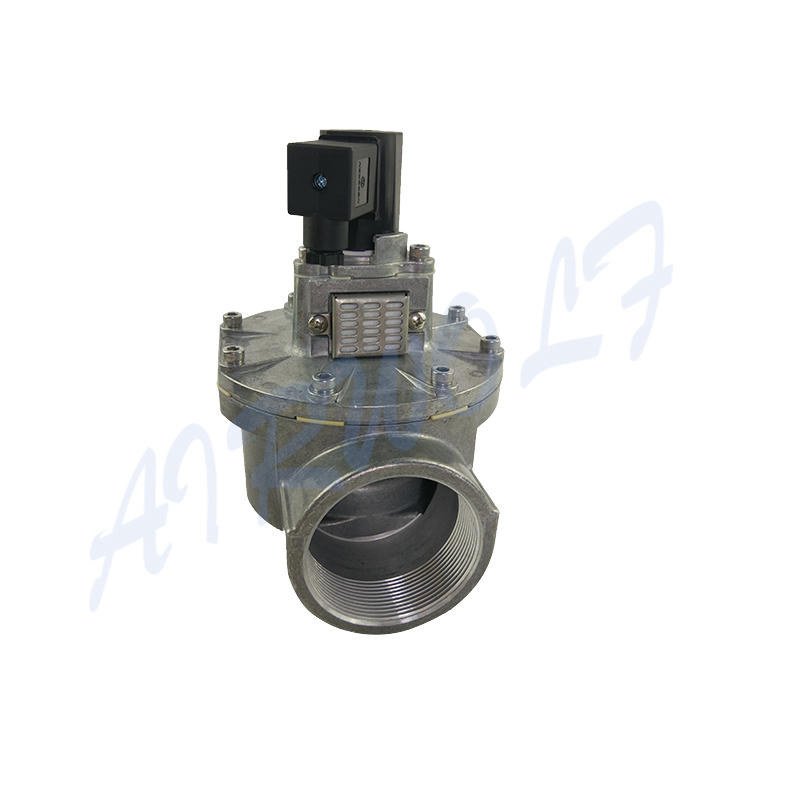

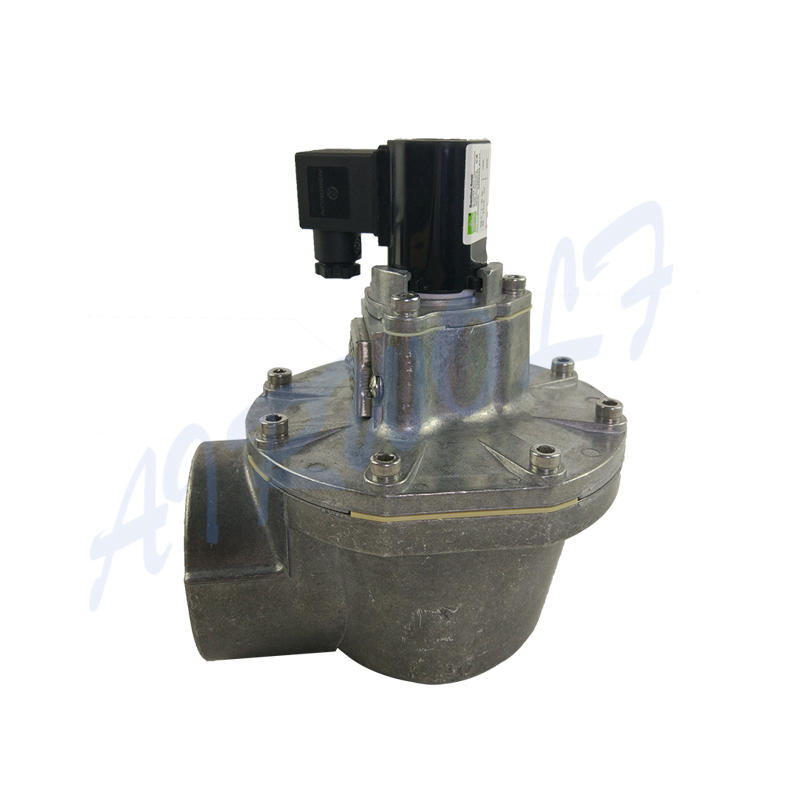

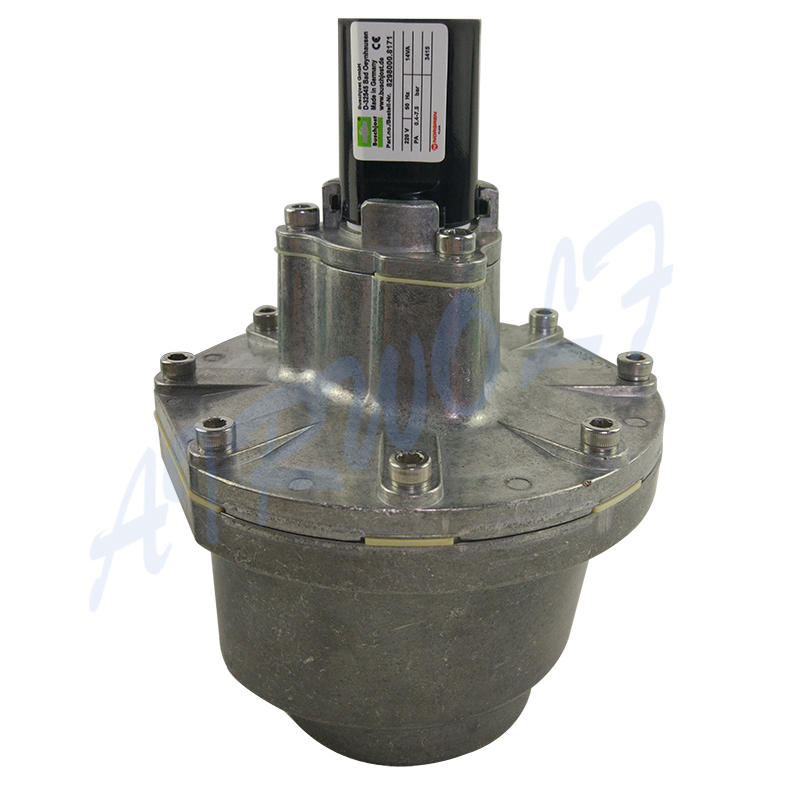

Dust filter systems have gained in importance over the years as environmental standards have risen. Air or gas contaminated with dust must nowadays be filtered before it can be discharged into the atmosphere. Pulse jet valve is the most important part of dust filter systems. It is widely used in Lime Industry, Chemical Working Indusrty, Environment, Mining, Pharmaceutical Indusrty etc.
Ordering Code: 8296800.8171
Material
◈Body: Aluminum
◈ Seat Seal: TPE
◈Spring: 304 SS
◈ Screws: 302 or 304 SS
◈ Port size: 2 1/2"
◈ Switching function: normally closed
◈ Operating pressure: 0.4 to 8 bar
◈ Fluid temperature: -40 °C up to max. +85 °C
◈ Ambient temperature: -20 °C up to max. +85 °C
◈ Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.
◈ Diaphragm and pilot inspection should be conducted annually.
◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.
◈Port: Ningbo/Shanghai
Solenoid 8171 standard voltage: DC24V, AC24V, AC110V, AC220V
Seat seal repair Kit
| Part number | For valves with solenoid 8171 and seal TPE |
| 1261253 | 8296300 |
| 1261253 | 8296400 |
| 1261402 | 8296600 |
| 1268274 | 8296700 |
| 1268274 | 8296800 |
| 1271526 | 8392900 |
Drawing
| Connection size G | H | H1 | L | L1 |
| G 3/4 | 105.5 | 83 | 95 | 50 |
| G 1 | 105.5 | 83 | 95 | 50 |
| G 1 1/2 | 166 | 136 | 135 | 70 |
| G 2 | 190.5 | 149 | 170 | 95 |
| G 2 1/2 | 205.5 | 160 | 170 | 95 |
| Index | Description |
| 101 | Valve body |
| 102 | Valve cover |
| 103 | Diaphragm |
| 104 | Allen head screw |
| 105 | Diaphragm |
| 106 | Valve cover |
| 107 | Silencer |
| 108 | Silencer housing |
| 109 | Allen head screw |
| 400 | Solenoid |
| 702 | Plunger |
| 705 | Pressure spring |
| 706 | Pressure spring |
| 707 | Silencer |
| 1400 | Electrical connector (included) |
Service kits
| Part number | For valves with solenoid 8171 and seal TPE |
| 1261253 | 8296300 |
| 1261253 | 8296400 |
| 1261402 | 8296600 |
| 1268274 | 8296700 |
| 1268274 | 8296800 |
