The AC series Self-compensation shock absorber are designed with high hardness stainless steel shaft, the body is strong anticorrosive and anti-rust and the shock absorber has better impact and corrosion resistance, to avoid the mechanical damage and prolong the service life of the machine. Applied to the fields of manipulator, pneumatic cylinder, Conveyor Systems, Factory Automation, medical instruments etc.
◈Body material: Iron
◈Stroke:30 mm
◈Working temperature:-10 ~+80 ℃
◈ Impact speed: Middle speed
Principle:
When piston rod is impacted, it will drive piston to press oil in inner
tube. Oil will be pressed out through orifice holes of inner tube. At
the same time, the oil returns to inner tube through returning hole of
inner tube.
After outside force vanishes, spring makes piston rod
immediately return to its position. Oil will return to inner tube
through check valve. Then shock absorber will return to be ready
position waiting for next action.
Attention
1. It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft.
2.
The surface of the shaft should not be covered with sewage or dirty
oil, and the shaft must operate in a clean environment.Otherwise, it
will increase the probability of product leakage and reduce the service
life of the product.
3. It is strictly prohibited to spray paint on
the pipe teeth and axis, otherwise it will affect the heat dissipation
effect and oil leakage.
Feature
| Model | Stroke （mm） | Max. Impact Speed (m/s) |
| AC1410-2 | 10 | 2 |
| AC1420-2 | 20 | 2 |
| AC1425-2 | 25 | 2 |
| AC2020-2 | 20 | 2 |
| AC2030-2 | 30 | 2 |
| AC2050-2 | 50 | 2 |
| AC2525-2 | 25 | 2 |
| AC2550-2 | 50 | 2 |
| AC3660-2 | 60 | 2 |
Quality Standards
The company for the products are
brand new original products, no second-hand and refurbished products, or
leave a compensable ten and return the full amount, but the buyer due
to our purchase of model error is not responsible for returns, another
of the company's sales of products enjoy one year from the date of
shipment quality assurance, according to the original quality standards,
during warranty with product problems, need confirmation testing by the
manufacturer, the supplier to be solved, the demand side due to
storage, use, poor maintenance caused by lower-quality product, and not
raise objections.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2.
If the products which were customized, we will complete the production
within a specified period of time, and send it out the first time, we
can promise it.
3. We have a variety of ways to deliver goods,
usually DHL, Fedex, TNL will be normal ways, If you require use of a
courier, we can do it.
4. Also we can send by your delivery acount if you want.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

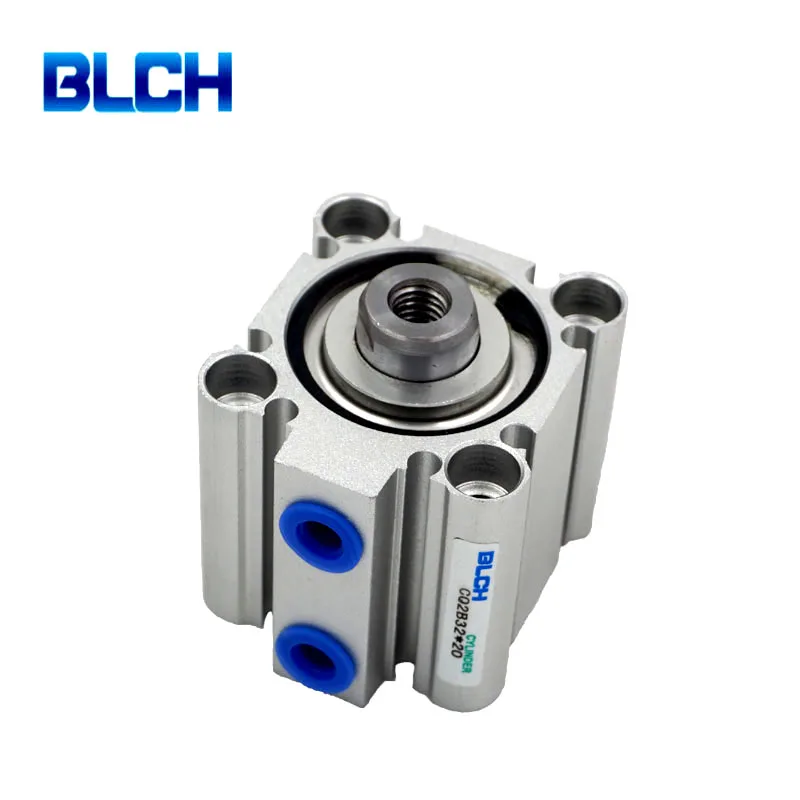

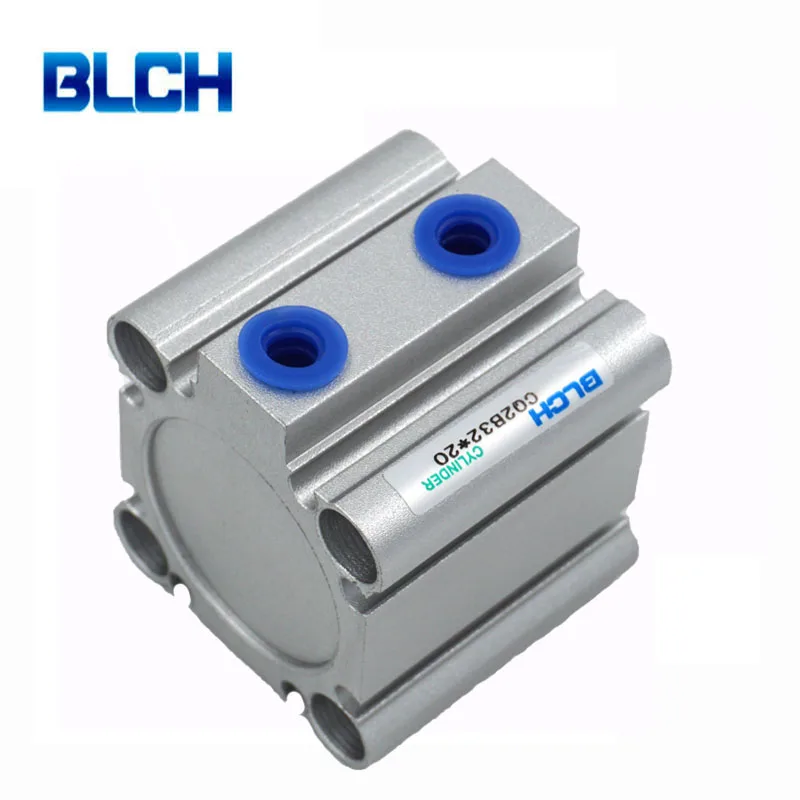

Specifications:
Code | SDA |
Bore | 12 16 20 25 32 40 50 63 80 100 |
Pressure | 0.1~0.9Mpa |
Motion | Double acting |
Temperature | -5~70 |
Cushion | Adjustable cushion at both ends |
Port size | 1/8" 1/4" 3/8" 1/2" |
Material | Aluminium alloy |
