anti pulse valve | Pulse Jet Valve

Product Information
Customer Reviews

Material: Aluminum Alloy

Certification: CE

Availability: OEM

Delivery Time: 1-3 work days

Start Port: Ningbo/Shanghai

Supply Ability: 10000 PCS/Week

Product Comparison

AIRWOLF is certified by various qualifications. We have advanced production technology and great production capability. pneumatic parts supplier has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.Compared with products in the same category, pneumatic parts supplier's core competencies are mainly reflected in the following aspects.

Product Details

With a focus on product quality, AIRWOLF pursues perfection in every detail.AIRWOLF's pneumatic components is commonly praised in the market due to good materials, fine workmanship, reliable quality, and favorable price.

Company Advantages
1. AIRWOLF goyen pulse valve is manufactured by our highly skilled professionals in our sophisticated fabrication unit.
2. Thanks to the efforts of our experienced team, anti pulse valve we manufacture is of goyen pulse valve.
3. The leading features of anti pulse valve include goyen pulse valve and long service life.
4. This product is very popular in the market and is widely used in the market.

Detailed Description

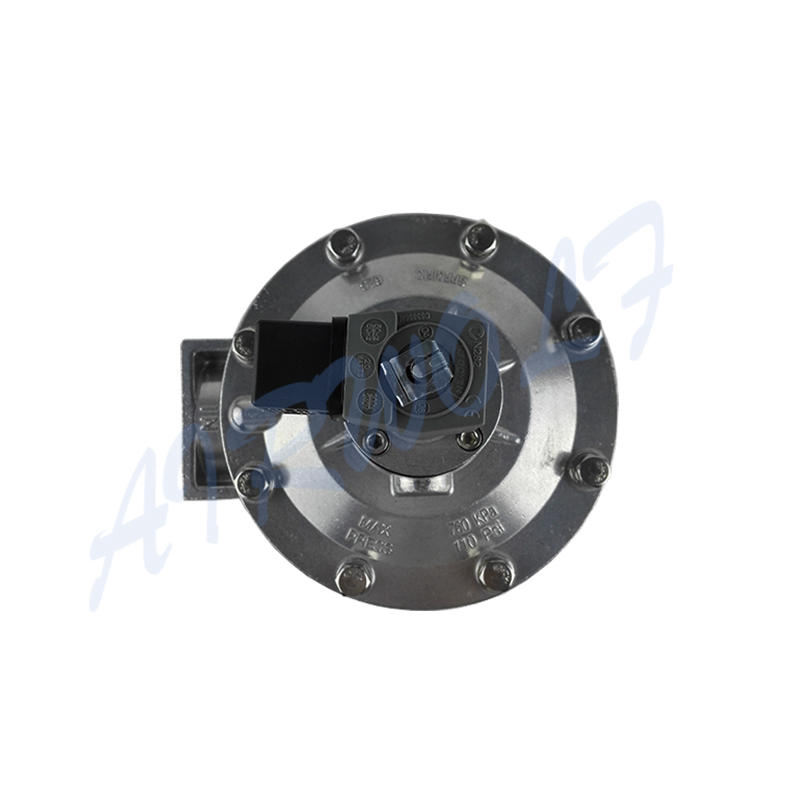

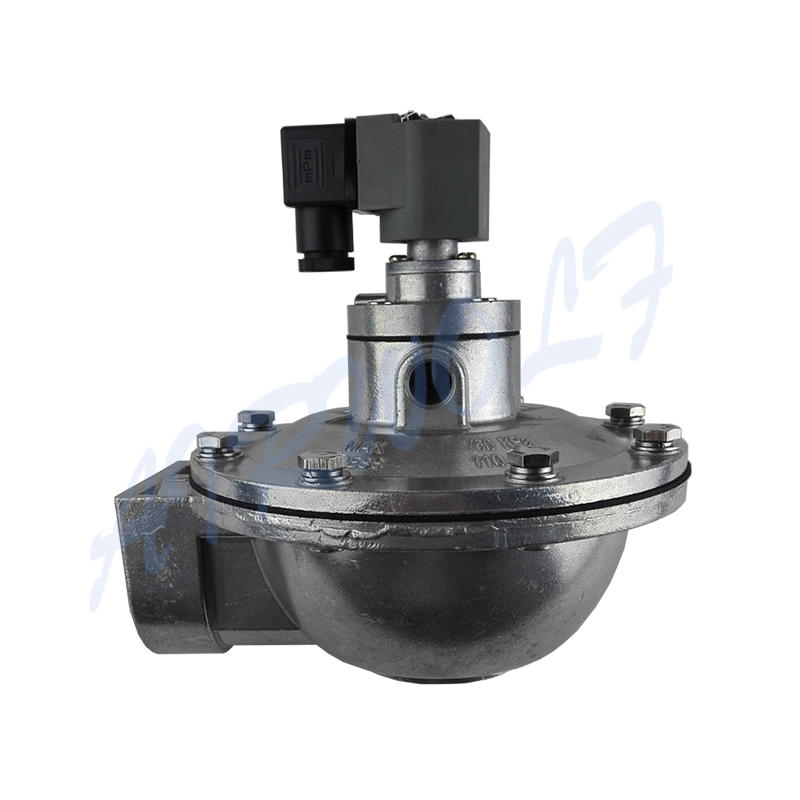

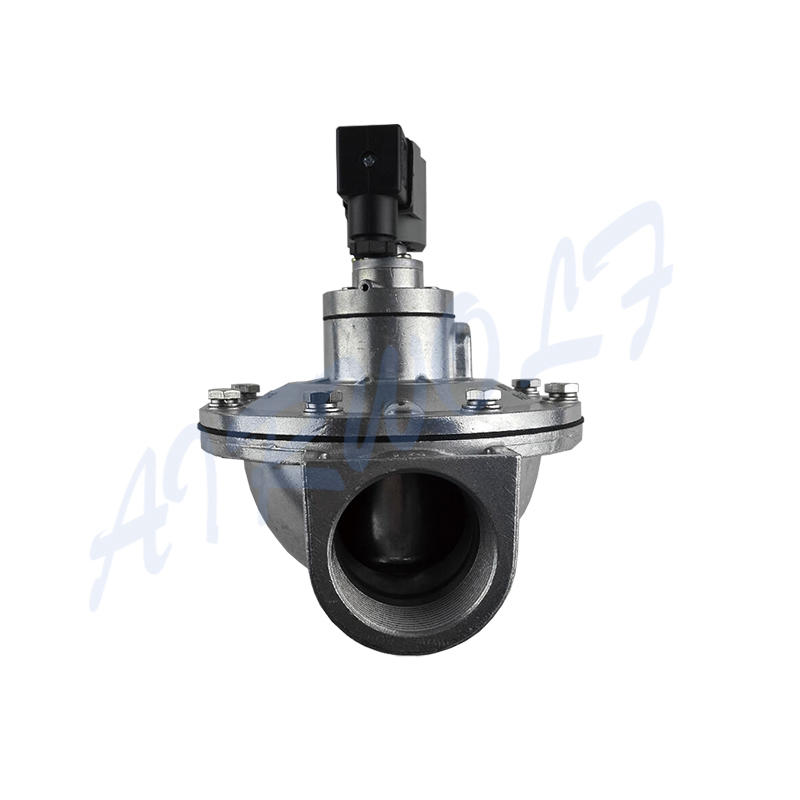

CA50T is a 2 Inch Goyen type pulse valve. Its repair kits have: K5004, K5000,K0380 and K0384. It is an electrically controlled right angle valve. High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.

Construction

◈ Model: CA50T

◈ Recommended time between pulses: 1 minute or greater

◈ Recommended on time range: 50-500ms

◈ Port Size: 2"

◈ Diaphragm kits: Diaphragms, o-ring, armature, assembly, armature spring, ferrule

◈ Diaphragm Seat: Viton or Nitrile

Advantages

part.1

The performance is stable and reliable, and the service life of the diaphragm is more than 1 million times or three years.

part.2

The body and cover are die-cast compact, and the surface is covered with transparent paint to improve the corrosion resistance.

Approvals

◈ C-Tick

◈ EMC (89/336/CE)

◈ ATEX II 3 G & D (94/9/CE) (when fitted with QR or QF type solenoids)

Packaging & Delivery

◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.

◈Port: Ningbo/Shanghai

◈Delivery time: 1-3 work days

Common failures and repair methods

◈Spring damage. The springs on the pilot head of the pulse valve are easily damaged, which results in the long-term bleeding of the pulse valve to the nozzle.
Solution: Replace the spring.

◈Damage of rubber pad. After using for a long time, the rubber pad on the pilot head of the pulse valve is easily damaged, resulting in the long-term bleeding of the pulse valve to the nozzle.
Solution: Replace the rubber pad

◈Pilot dirt. Because the air intake is not clean, the fouling of the pilot is accumulated, resulting in the long-term intake of the nozzle or the pulse valve doesn't work after electrification.
Solution: Clean the pilot.

◈Damage of diaphragm. After long-term operation, the diaphragm is easy to oxidize, resulting in leakage of the pressure relief port, and the pulse valve doesn't work.
Solution: Change diaphragm.

Specifications

◈Weight

Size	Integral Pilot: KG	Remote Pilot: KG
20	0.6	0.38
25	0.73	0.53
35	1.04	0.83
45	1.5	1.28
50	2.89	2.68
62	3.31	3.09
76	4.77	4.56

◈ Port size: 2"

◈ Color: Slivery

Operation

Recommended on-time range: 50–500 ms

Recommended time between pulses: 1 minute or greater

Applications

Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.

Company Features
1. AIRWOLF CO, LTD is an internationally renowned leading company dedicated to anti pulse valve production.
2. AIRWOLF has focused on the establishment of technical labs.
3. Constant excellence and constant quality assurance are of great importance to AIRWOLF. Please contact. In the process of development, AIRWOLF firmly established a brand-new concept of valved pulse jet plans . Please contact.
