Material: Aluminum alloy

Delivery Time: 5 Days after payment

Start Port: NINGBO

Supply Ability: 1000pcs/week

Detailed Description

FEATURES
1.The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
2.The high flow, angle type bodies, springless construction, in combination with the special diaphragm assemblies give the unique operating features required for dust collector service applications
3.The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4.Built-in silencers guarantee noise free operation and avoid foreign particles entering the valve
5.The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and explosionproof solenoids for use in potentially explosive atmospheres (gas & dust) according to Directive ATEX 94/9/EC can be mounted on the same basic valve (see page 45 till 52)

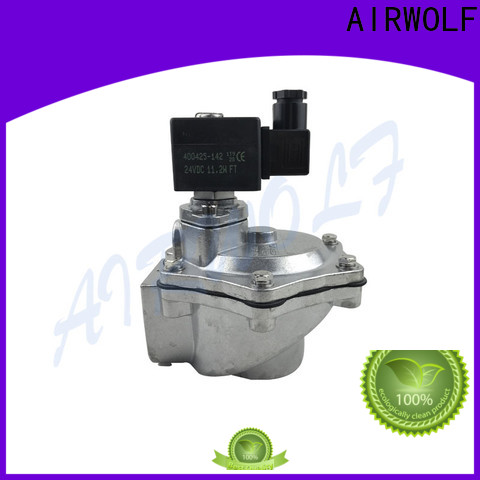

AIRWOLF aluminum alloy goyen pulse jet valve custom-1

CONSTRUCTION

◈Body: Aluminium

◈ Diaphragm: TPE (hytrel)

◈ Ambient temperature range: -20 to +85°C

◈ Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa

◈ Electrical safety: IEC 335

◈ Shading coil: Copper

◈ Size:1-1/2"

◈ Voltage:220VDC

◈ Type:Normal Colse

Features

AIRWOLF aluminum alloy goyen pulse jet valve custom-2

part.1

The valves with long operating life,even under extreme conditions.

AIRWOLF aluminum alloy goyen pulse jet valve custom-3

part.2

Standard coils for AC or DC.

AIRWOLF aluminum alloy goyen pulse jet valve custom-4

part.3

The voltage from 12 V to 400 V, 50, 60 or 50/60 Hz.

AIRWOLF aluminum alloy goyen pulse jet valve custom-5

part.4

Coils can be fitted without use of tools

AIRWOLF aluminum alloy goyen pulse jet valve custom-6

part.5

ASCO components satisfy all relevant directives.

◈Voltages:The coil has a wide selection of coils available to meet your needs. Most coil terminations are available with our standard voltages of 12V and 24V in DC, and 120V and 240V in AC. Voltages 6V, 10V, 18V,36V, 48V DC and 440V AC are also available for many termination types at a slight premium. Contact your representative should your application call for voltages other than our standard offering.

Packaging

AIRWOLF aluminum alloy goyen pulse jet valve custom-7

Package

◈Packaging Details:plastic bags,boxes, carton, pallet or as customer advice

◈Payment Terms:T/T, Western Union,Paypal

◈Supply Ability:1000 pieces per 12 working days.

Shipping

AIRWOLF aluminum alloy goyen pulse jet valve custom-8

AIRWOLF aluminum alloy goyen pulse jet valve custom-9

◈If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.

◈ By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.

Technical data

AIRWOLF aluminum alloy goyen pulse jet valve custom-10

◈Weight:1.4kg
