Detailed Description

It is a 5/2 way Single solenoid valve for air,The acting is piloted,Solenoid valve is industrial equipment controlled by the electromagnetic.It is the basic components of automation to control the flow.belongs to the actuator.Offers Automatic industrial lined pneumatic valves for allpneumatic cylinders. It has good gightness and sensitive reaction,and available to form integrated valve group with the base to save installation space. Affiliated manual devices are equipped to facilitate installation and debugging.Several standard voltage grades are optional.

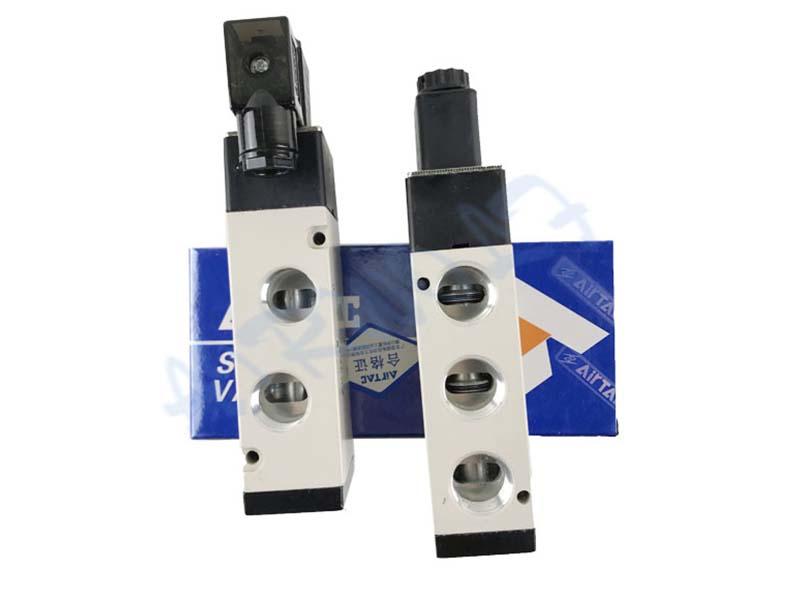

AIRWOLF aluminium alloy pneumatic solenoid valve body direction system-1

Features & Benefits

◈ Operating pressure:0.15~0.8MPa(21~114psi)

◈ Max.frequency:3 cycle/sec

◈ Standard voltage:AC220,AC110V,AC24V,DC24V,DC12V.

◈ Protection:IP65

◈ Materials:Aluminum alloy

◈ Connector:Plastic

◈ Fluid:Air(to be filltered by 40um fillter element)

◈ Max. Pressure:1.5MPa (215psi)

◈ Temperature Range:-20 to 70°

◈ Valve Configurations:Connector;Coilvalve;Body

◈ End Connections:PT, NPT, G (1/2")

Application

Common application

Solenoid valve is the solenoid coil energized after magnetic attraction to overcome the pressure of the spring drive valve core action, on an electromagnetic coil, simple structure, cheap price, can only be used as a switch.

AIRWOLF aluminium alloy pneumatic solenoid valve body direction system-2

part.1

It is used for switch control of liquid and gas pipelines, and it is two-position DO control.Generally used for small pipe control.

AIRWOLF aluminium alloy pneumatic solenoid valve body direction system-3

part.2

Can only be used as a switch quantity, is DO control, can only be used for small pipe control, common in DN50 and below pipe, rarely upward.

AIRWOLF aluminium alloy pneumatic solenoid valve body direction system-4

part.3

Used in industrial control systems to adjust the direction, flow, speed and other parameters of the medium.

AIRWOLF aluminium alloy pneumatic solenoid valve body direction system-5

part.4

Super Long Life.

Selection

AIRWOLF aluminium alloy pneumatic solenoid valve body direction system-6

AIRWOLF aluminium alloy pneumatic solenoid valve body direction system-7

◈ Explosive environment: must choose the electromagnetic valve corresponding explosion-proof grade.

◈ When there is a reverse flow phenomenon in the pipe, can choose with check function solenoid valve.

◈ High temperature fluid:To choose solenoid valve be made in High temperature resistant electrical and sealing materials.
