◈ Model: MV322R MV322PP MV322PL MV322PPB MV322EB MV322TB MV322LB
◈ Thread size: 1/4
◈ Operating pressure: 0-0.8Mpa
◈ Operating temperature: -5-60℃
Aluminum Surface is polished and hard anodized.
To import Germany grease to provide firm less-friction support
O-ring is imported from Taiwan.

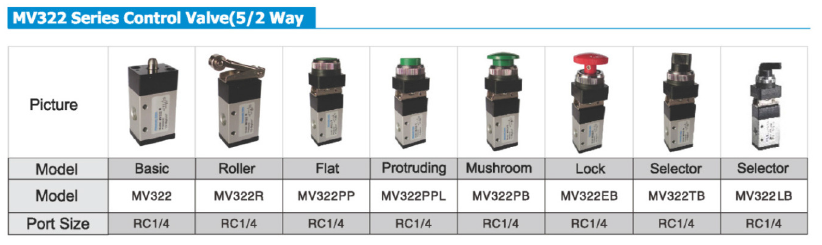

Specification
| Model(2/3 Way) | MV322 | MV322R | MV322PP | MV322PPL | MV322PB | MV322EB | MV322TB |
| Model(2/5 Way) | MV522 | MV522R | MV522PP | MV522PPL | MV522PB | MV522EB | MV522TB |
| Thread size | G1/4 | ||||||
| Operating pressure | 0-0.8Mpa | ||||||
| Operating temperature | -5-60℃ | ||||||

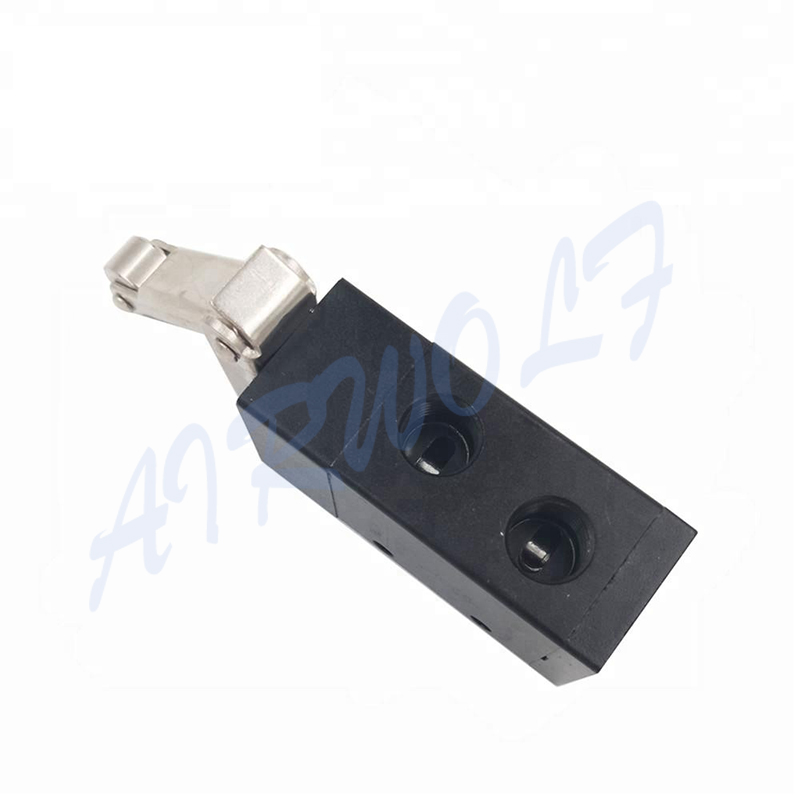

| Type | Basic | Roller | Flat-head push button | Raised-head push button | Big round push button | With lock push button | Selector push button |
| Model No. | MV322/R/PP/PPL/PB/EB/TB |
| Working Medium | Clean air(After 40um filteration) |
| Motion Type | Direct acting |
| Port Size | G1/4'' |
| Position No. | 2 Position 3 Port |
| Working Pressure | 0~0.8Mpa(0~114Psi) |
| Working Temperature | -5~60℃(28~114°F) |
| Lubrication | Not required |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNT will be normal ways, If you require use of a courier, we can do it.4. Also we can send by your delivery acount if you want.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
