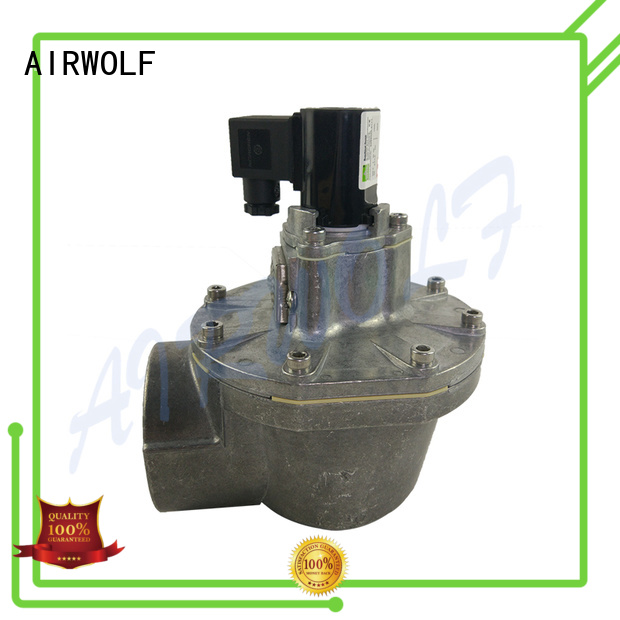

Dust filter systems have gained in importance over the years as environmental standards have risen. Air or gas contaminated with dust must nowadays be filtered before it can be discharged into the atmosphere. Pulse jet valve is the most important part of dust filter systems. It is widely used in Lime Industry, Chemical Working Indusrty, Environment, Mining, Pharmaceutical Indusrty etc.
Ordering Code: 8296800.8171
Material
◈Body: Aluminum
◈ Seat Seal: TPE
◈Spring: 304 SS
◈ Screws: 302 or 304 SS
◈ Port size: 2 1/2"
◈ Switching function: normally closed
◈ Operating pressure: 0.4 to 8 bar
◈ Fluid temperature: -40 °C up to max. +85 °C
◈ Ambient temperature: -20 °C up to max. +85 °C
◈ Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.
◈ Diaphragm and pilot inspection should be conducted annually.
◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.
◈Port: Ningbo/Shanghai
Solenoid 8171 standard voltage: DC24V, AC24V, AC110V, AC220V
Seat seal repair Kit
| Part number | For valves with solenoid 8171 and seal TPE |
| 1261253 | 8296300 |
| 1261253 | 8296400 |
| 1261402 | 8296600 |
| 1268274 | 8296700 |
| 1268274 | 8296800 |
| 1271526 | 8392900 |
Drawing
| Connection size G | H | H1 | L | L1 |
| G 3/4 | 105.5 | 83 | 95 | 50 |
| G 1 | 105.5 | 83 | 95 | 50 |
| G 1 1/2 | 166 | 136 | 135 | 70 |
| G 2 | 190.5 | 149 | 170 | 95 |
| G 2 1/2 | 205.5 | 160 | 170 | 95 |
| Index | Description |
| 101 | Valve body |
| 102 | Valve cover |
| 103 | Diaphragm |
| 104 | Allen head screw |
| 105 | Diaphragm |
| 106 | Valve cover |
| 107 | Silencer |
| 108 | Silencer housing |
| 109 | Allen head screw |
| 400 | Solenoid |
| 702 | Plunger |
| 705 | Pressure spring |
| 706 | Pressure spring |
| 707 | Silencer |
| 1400 | Electrical connector (included) |
Service kits
| Part number | For valves with solenoid 8171 and seal TPE |
| 1261253 | 8296300 |
| 1261253 | 8296400 |
| 1261402 | 8296600 |
| 1268274 | 8296700 |
| 1268274 | 8296800 |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2.
If the products which were customized, we will complete the production
within a specified period of time, and send it out the first time, we
can promise it.
3. Also we can send by your delivery acount if you want.
4.
We have a variety of ways to send goods, usually DHL, Fedex, TNL will
be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
| Our product features | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
Warranty
All
item Comes with Basic 3 Month Sellers Warranty, if item defective in 3
Month, We will offer replacement without extra Charger(including
shipping fee)After we Receive the Defective item.
If item Defective
after 3 Month, Buyers can still send it back, We will contact suppliers
or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee
For resend the replaced item.
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
We will give you a reply within 24 hours after receiving your inquiry.

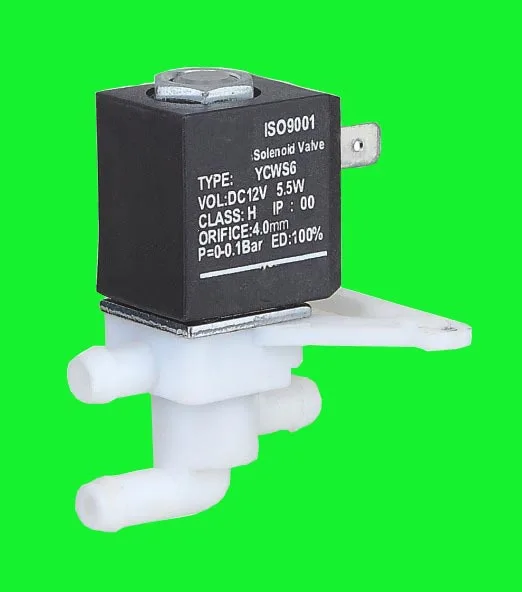

SLGPC-YCWS6 3 way solenoid valve
Dimension:
SLGPC-YCWS6
Medium: Water,air,oil, etc
Temperature:-10 to 80 degrees centigrade
Body: POM
Pressure:0~0.5 bar
Port:8.4mm outer dia
Orifice: 5.0mm
Seal:Silicon rubber
Characteristic:
(1)Direct acting at low power consumption
(2)Food class body material available for RO system, washer,miller,etc.
Medium: Air, water, etc.
Temperature: NBR seal: -10 to 80 degrees centigrade
EMDM seal: -30 to 80 degrees centigrade
VTION seal: -30 to 80 degrees centigrade
Pressure/Orifice: SLGPC-YCWS1: 0~7 bar 2.5mm
SLGPC-YCWS11: 0~7 bar 2.5mm
SLGPC-YCWS3: 0~7 bar 2.5mm
SLGPC-YCWS4: 0~5 bar 10.0mm
SLGPC-YCWS5: 0~5 bar 10.0mm
SLGPC-YCWS6: 0~5 bar 5.0mm
Port thread: BSPP, BSPT, NPT
Voltage: DC12V, DC24V
AC24V, AC120V, AC240V/60Hz, AC110V, AC220V/50Hz
Tolerance: Plus or minus 10%
Coils: (1)AB12B, 6VA(AC), 6W(DC), IP65, 100%ED
(2) SA11B, 9VA(AC), 8W(DC), IP65, 100%ED
(3) SA12B, 9VA(AC), 8W(DC), IP65, 100%ED
Body: Nylon, PP, POM
Seal:VITON, NBR, EPDM, Silicon Rubber
If you have special requirements, please feel free to contact us.

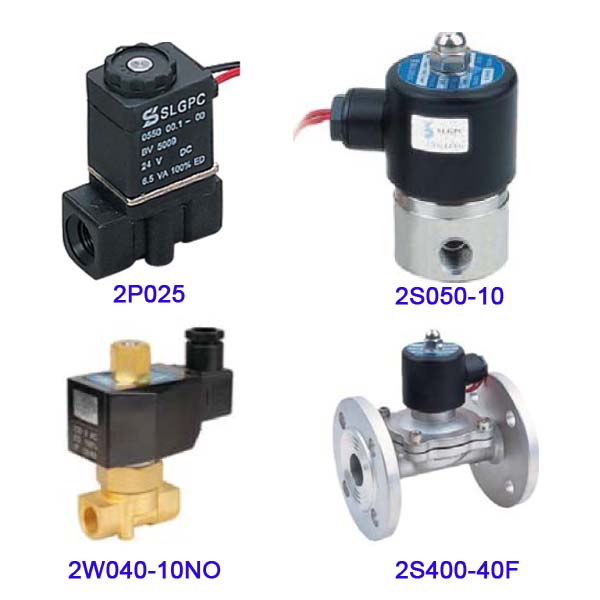

We also have many other types for your selection, below is some pictures of them:
Stock, Quality Testing & Packing:
(1)We have stock for the order of small quantity(less than 50 pcs)
(2)Quality test: 100% pressure test and leakage test before packing.
(3)Packaging Detail: Standard export packing with SLGPC brand or according to customer's special requirement.
Delivery details:
Within 5 working days after confirmation, shipping ways can be by sea, by air or courier, furthermore, we can ship the goods according to customer's special request.
Return & Refund terms:
If there are defective parts, we can change the new one for you within half a year , and we can mend it for you within a year.
Our advantage:
(1)We can do the designs according to customers’ requirements.
(2)We can open customers’ own mold as per their requirements.
(3)We can offer you a good after-sell service.
(4)Prompt delivery.
(5)Small order is welcome, the MOQ is 1 pc.
This is Paul, assistant manager of foreign trade department is at your service, if you need any further information, please feel free to contact me. My contact information is as follows:
TEL:0086-574-88879236
FAX:0086-574-88847138
CELL:0086-15258178302
Skype:paulkuo5
QQ:906162793
WeChat:paul906162793
WhatsApp:0086-18158463117
PS: It is ok to arrange samples for your quality testing.

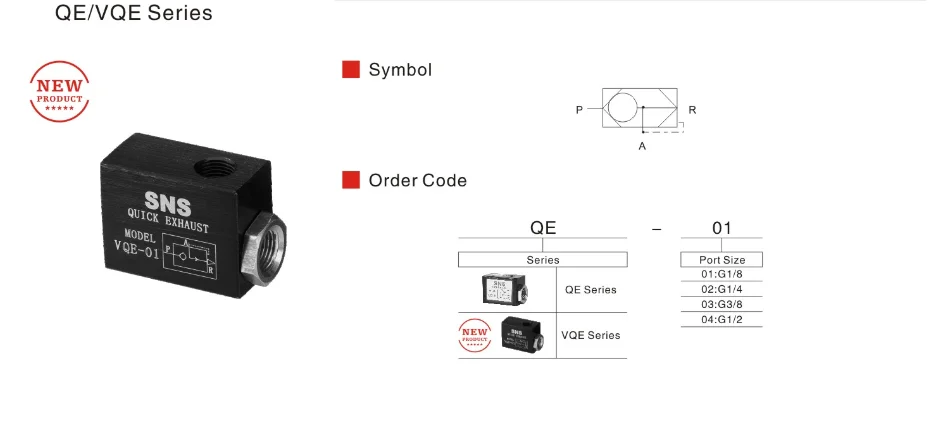

Technical Specification
| Model | QE-01 | QE-02 | QE-03 | QE-04 |
| Working Media | Compressed Air | |||
| Max.Working Pressure | 0.8MPa | |||
| Proof Pressure | 1.0MPa | |||
| Working Temperature Range | 0~70℃ | |||
| Port Size | G1/8 | G1/4 | G3/8 | G1/2 |
| Material | NBR/Aluminum alloy | |||
