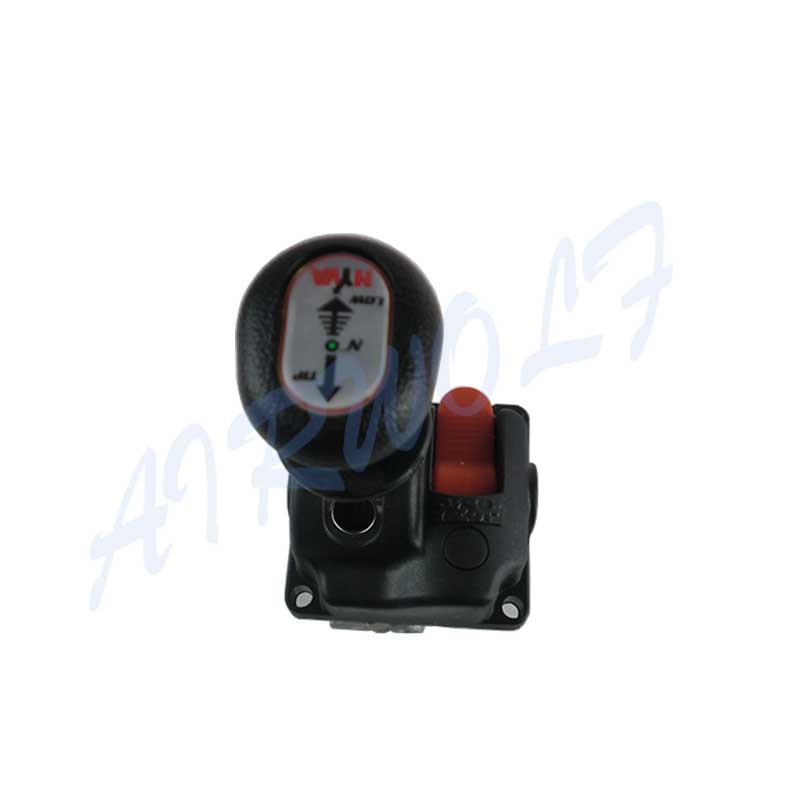

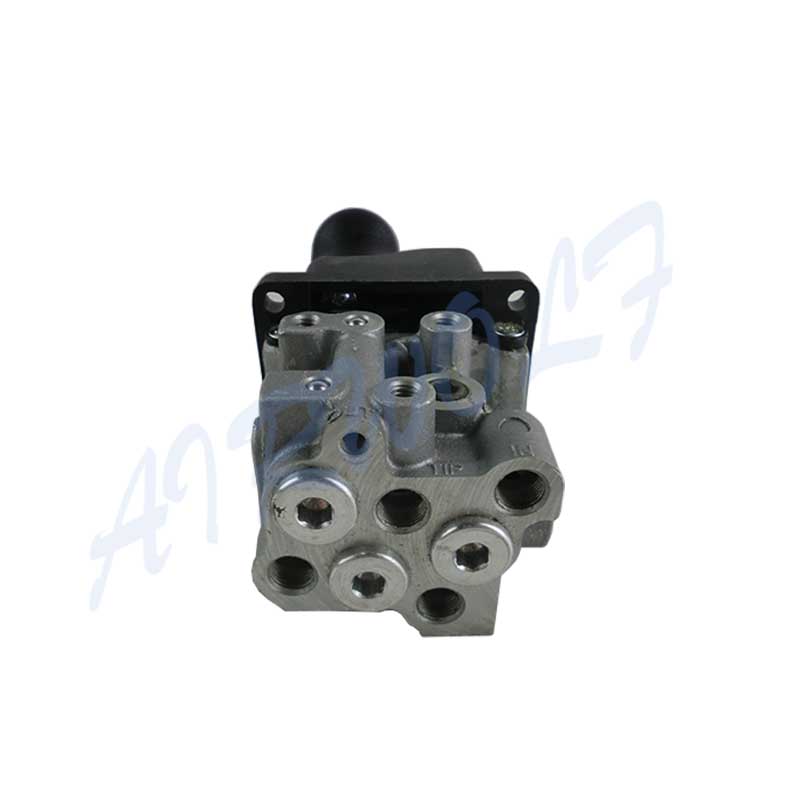

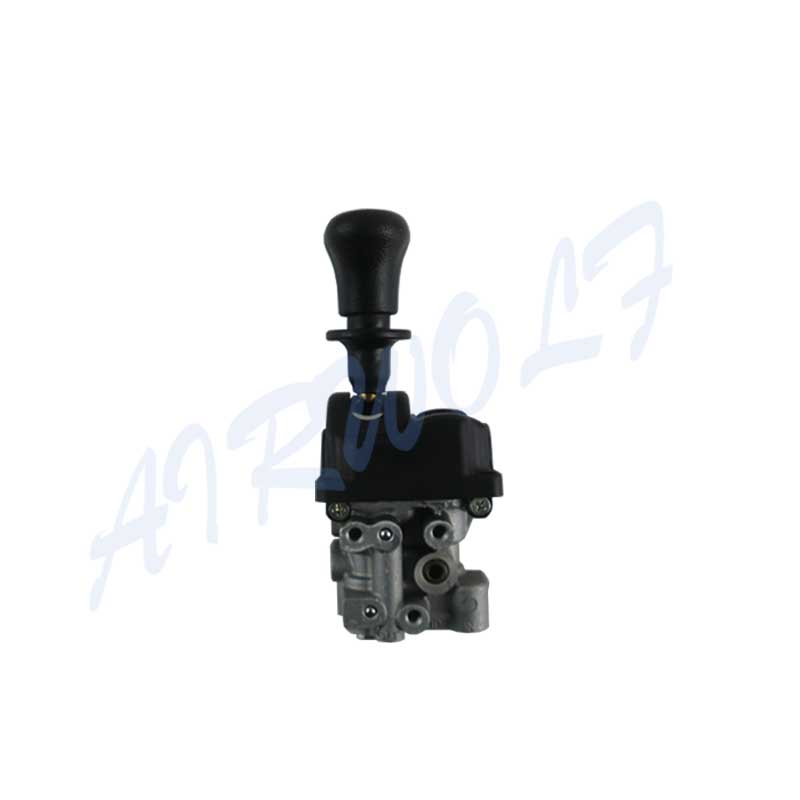

This is Hyva type proportional dump truck control valves, the lever position in stainless steel metal. The tipping controls are standard delivered with three positions: tip, lower and automatic neutral locking position. We have the two type: 71094-B and 71094-C, 71094-C equipped with a warning light to show that the P. T.O. is engaged, 71094-B without the light. There are 4 holes : air inlet, air exhaust, lowering connection (to tipping valve), tipping connection (to tipping valve).
◈ Power: Hydraulic
◈ Material: Aluminum
◈ Automatically locked in stop and fall position
◈ Working medium:Air
◈ Operating pressure(Bar): up to 12
◈ Working temperature: -40℃/+80℃
◈ Thread screw (mm): G1/4-6mm or NPT1/4 - 1/4"Hose
specifications
| Max. pressure | 12 bar |
| Min. pressure | 5 bar |
| Max. temperature | 60℃ |
| Min temperature | - 40℃ |
| Connections | 6 mm hose |
| Mounting holes | M6 |
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
