4CV-D air control tipping valve Hyva type Four Hole With PTO

Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement

Inquire Online

Get the latest price

Quantity Needed：

Pieces

E-mail：

Certification: CE, CQC

Availability: OEM

Delivery Time: 5 days

Supply Ability: 1000 PCS/Week

Detailed Description

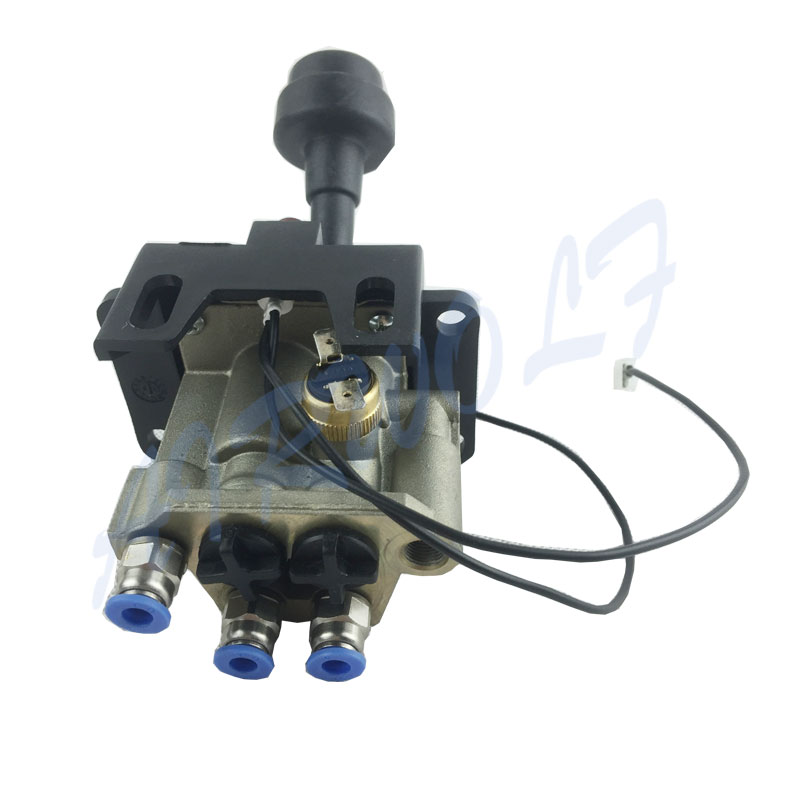

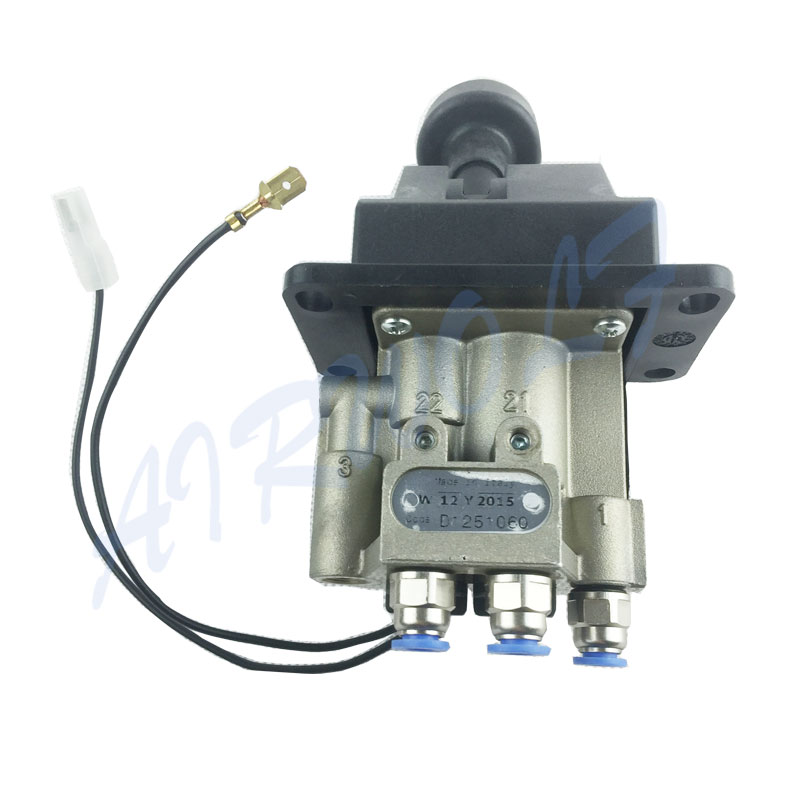

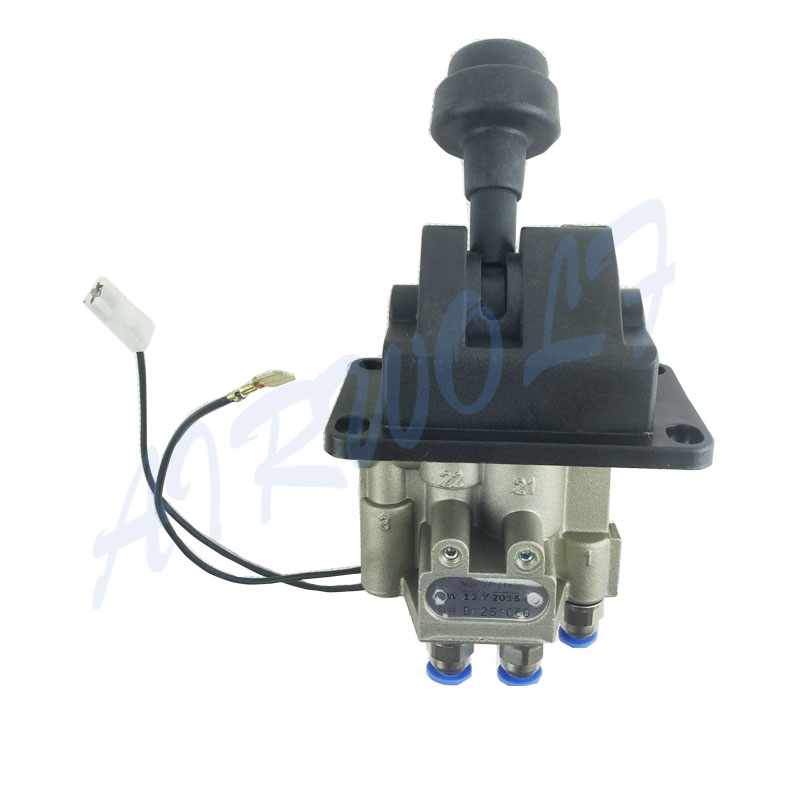

This is Four Hole Dump Truck Control Valve With PTO Function, It has four holes at the bottom, but the holes are arranged differently.

Data sheet

◈Nominal diameter (mm): 4

◈Seal Material: HNBR

◈Working temperature: -40℃ to 80℃

◈Ambient temperature: -55℃-180℃

◈Working Pressure: 0.5-12 Bar

Advantages

part.1

Can be used with pneumatic control valves.

part.2

Auto lock in stop and drop position.

part.3

Lower operating force, The operation is simple.

part.4

With nameplate, if you have special requirements on the nameplate, we also accept custom.

Product Features

◈Automatically locked in stop and fall position
◈Transposition clearly
◈Able to coordinate with the Pneumatic control valve
◈Small Operating force
