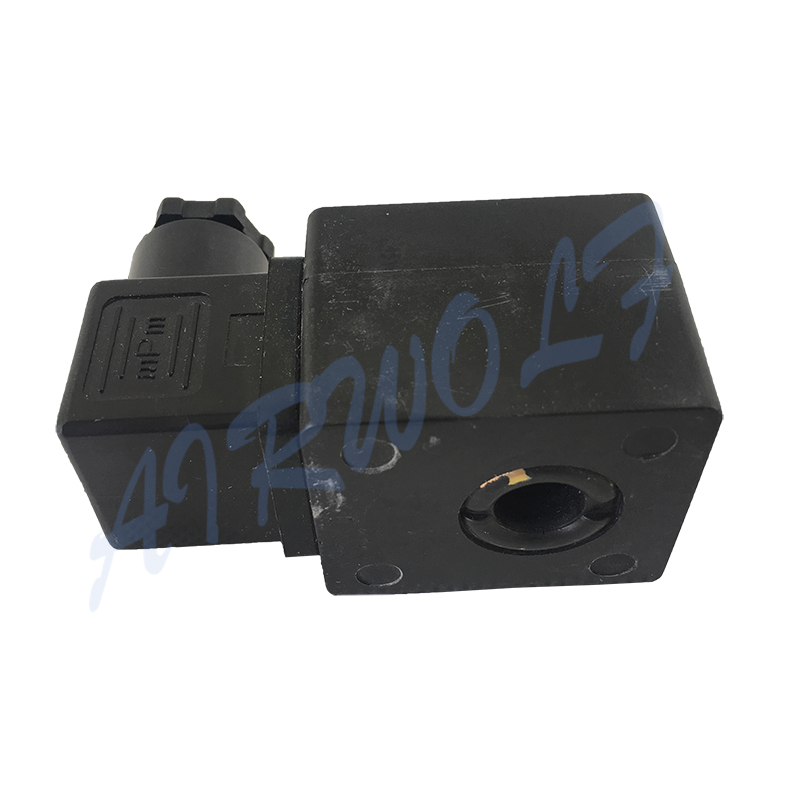

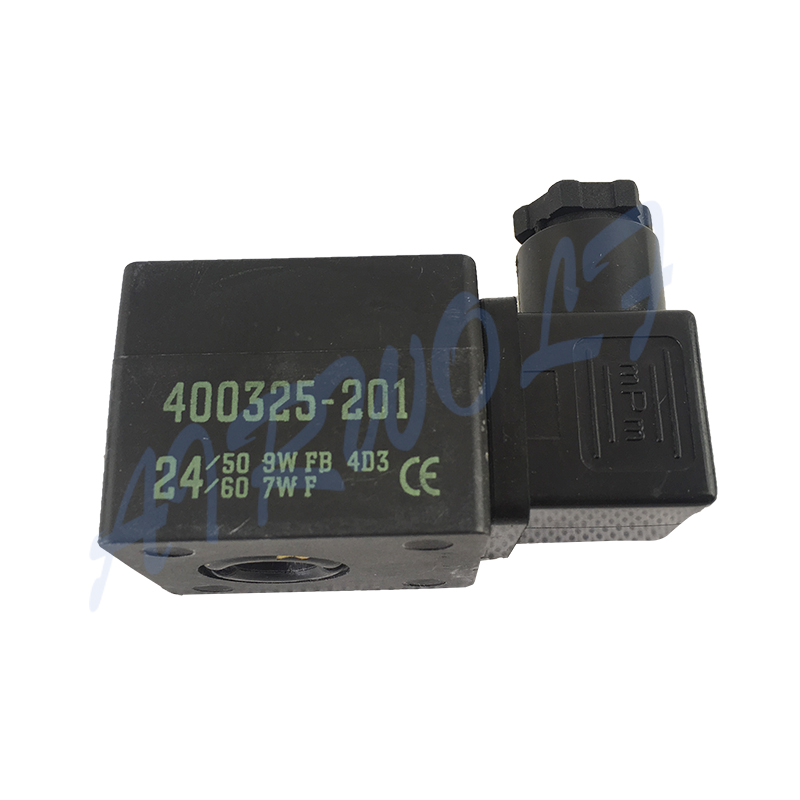

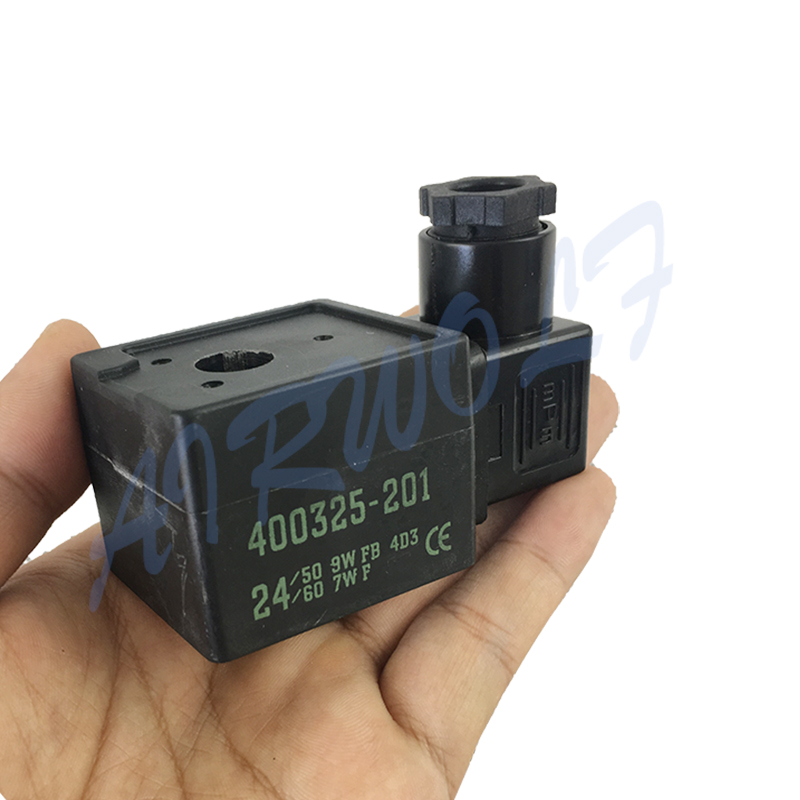

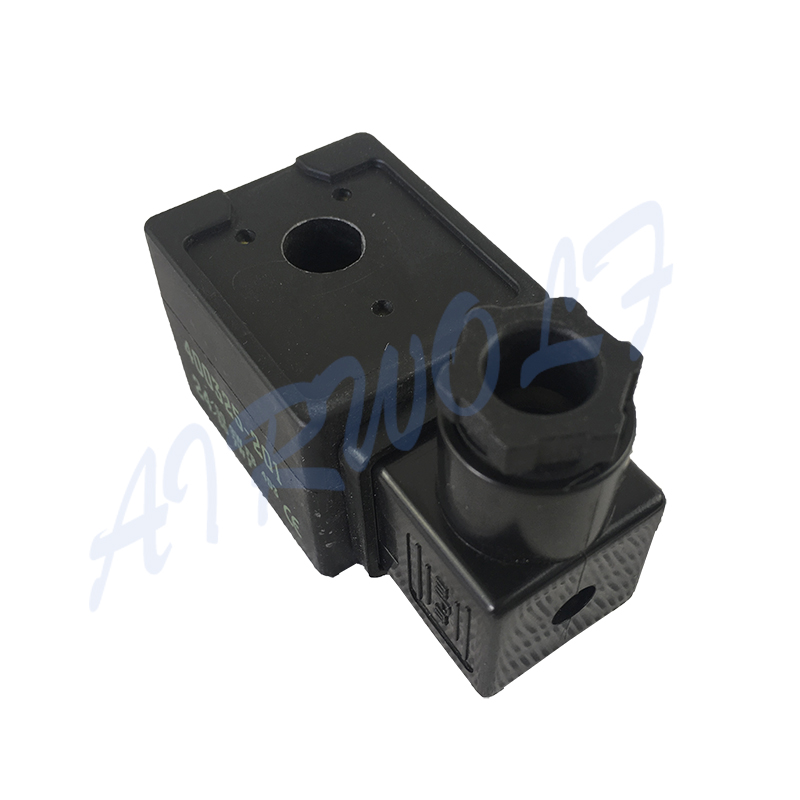

400325-205 400325-201 ASCO Type Solenoid Valve Coil



Ordering Code

◈ 400325-205

◈ 400325-201

Type

◈ 48VAC

◈ 24VAC

Fitted Valve Code

◈ SCG353A043

◈ SCG353A044



part.1

Small size, reliable operation, small commutation impact, long service life.



part.2

The valve body is composed of slide spool, slide sleeve and spring base.The solenoid coil is mounted directly on the valve body, which is enclosed in a sealed tube in a compact and compact combination.

◈ Voltages：The coil has a wide selection of coils available to meet your needs. Most coil terminations are available with our standard voltages of 12V and 24V in DC, and 120V and 240V in AC. Voltages 6V, 10V, 18V,36V, 48V DC and 440V AC are also available for many termination types at a slight premium. Contact your representative should your application call for voltages other than our standard offering.

◈ Installation requirements：The solenoid valve coils are generally screwed on. After a long time of work, the vibration will cause the screws to loosen. If the coil is pulled down, it may cause the coil to fall down.

2. Coil & nameplate
3. Gasket
4. Connector assembly

Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.

Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.

If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
