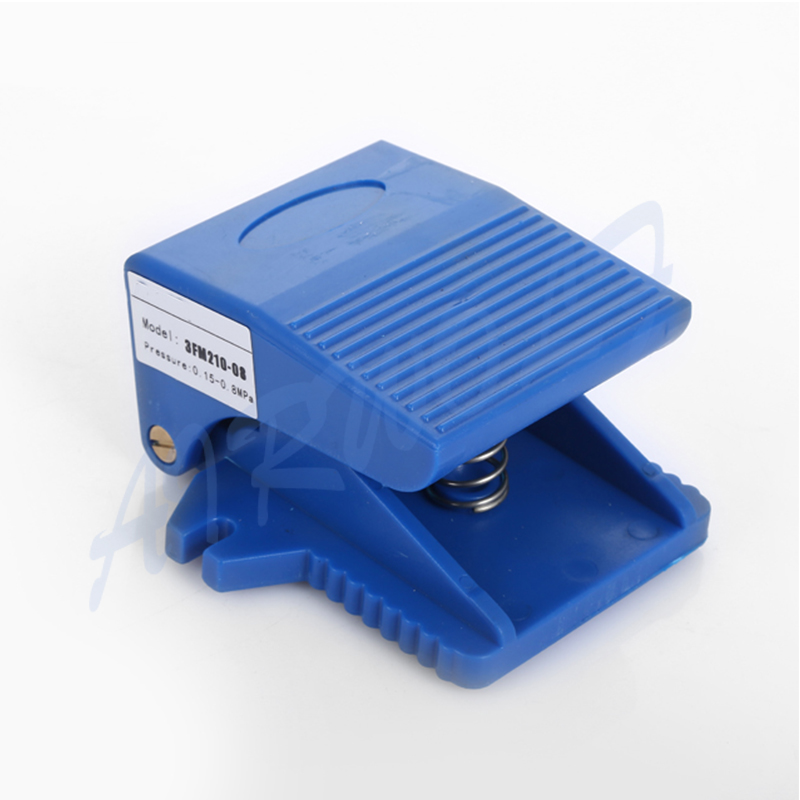

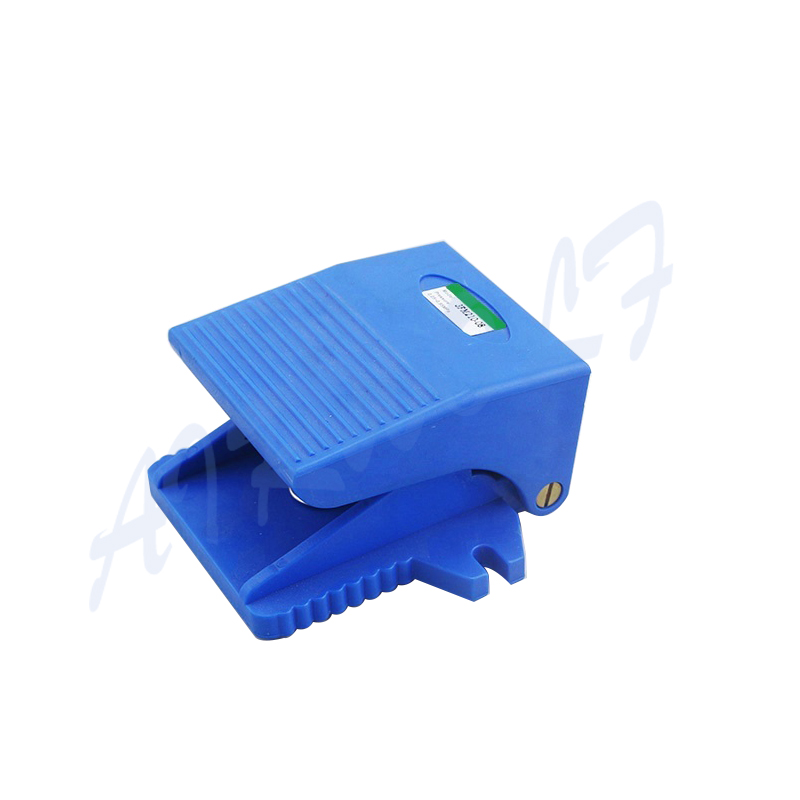

◈Model: 3FM210-08
◈Type: 3/2 way
◈Temperature: -20~70 ℃
◈ Body material: plastic
•Tight structure
Specification
| Model | 3FM210-M5 | 3F210-06 | 3FM210-06 | 3F210-08 | 3FM210-08 |
| Fluid | Air(to be filtered by 40um filter element) | ||||
| Operating | Acting type controlled by foot normally closed | ||||
| Port size | M5 | 1/8 | 1/4 | 1/8 | 1/4 |
| Valve type | 3/2 way | ||||
| Pressure range | 0~0.8MPa | ||||
| Proof pressure | 1.5MPa | ||||
| Temperature | -20~70℃ | ||||
| Body Material | 3FM: Plastic; 3F: Aluminum Alloy | ||||
| Lubrication | Not required | ||||
