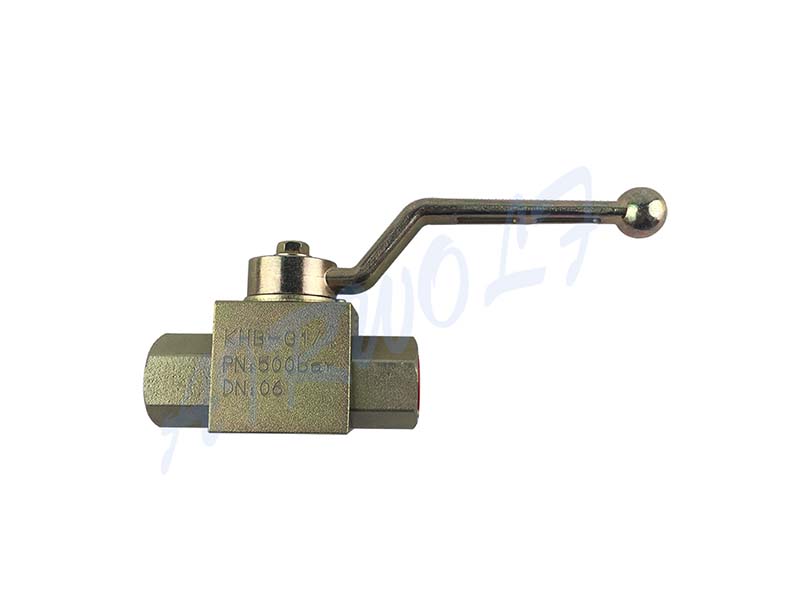

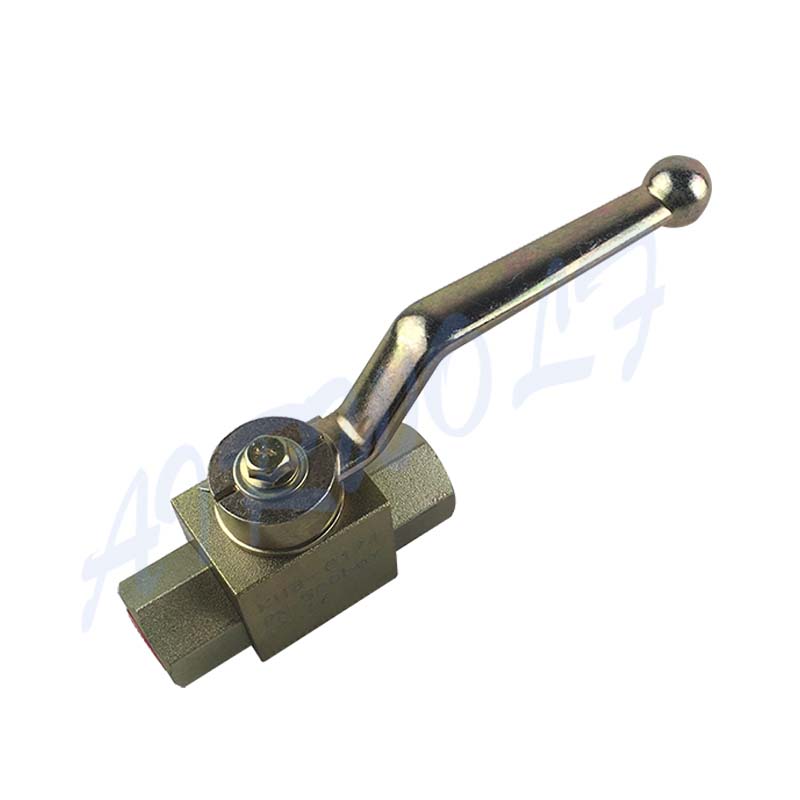

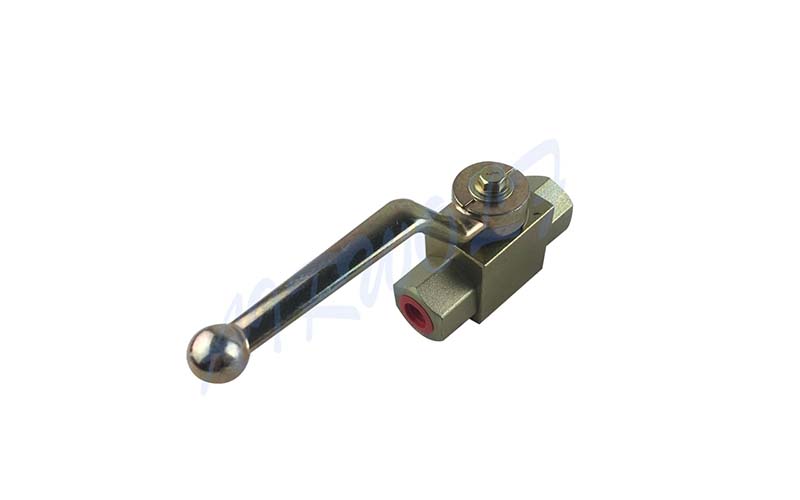

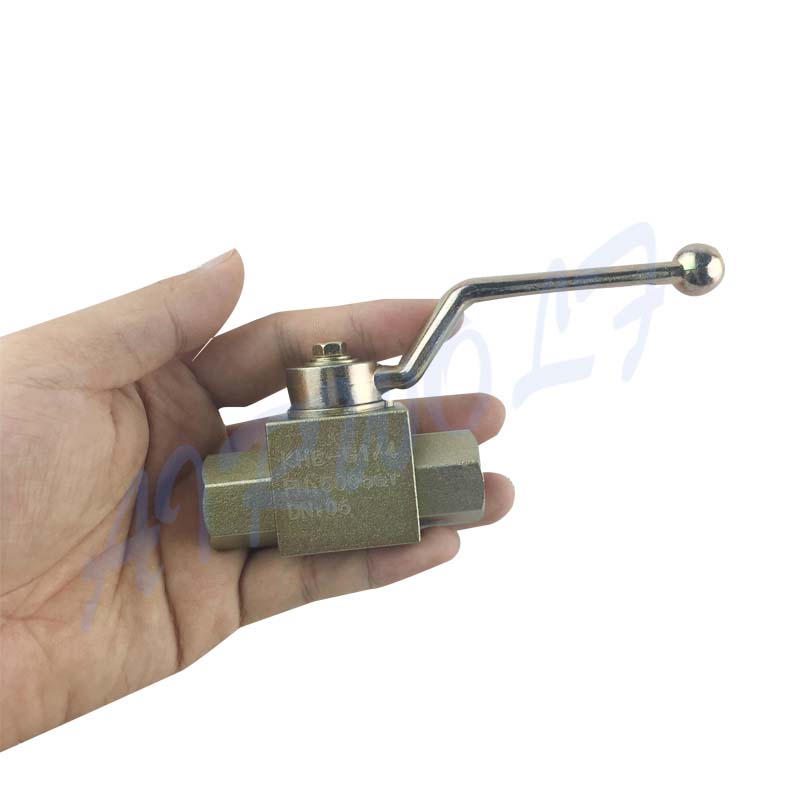

KHB high pressure ball valve is suitable for opening and closing of various pipelines in hydraulic and chemical systems. It is mainly used to control the flow and cut-off of oil in hydraulic pipeline. As long as the stem rotates 90 degrees, the ball valve completes the full opening or full closing action, and it is easy to achieve rapid opening and closing. When the ball valve opens and closes, the stem only rotates, so the packing seal of the stem is not easy to be destroyed, and the sealing force of the reverse seal of the stem increases with the increase of the medium pressure.
◈Locking devices
◈Stainless steel valve bodies
◈Off-set or straight control handles
◈Pneumatic or electrical actuators
◈Limit switch
◈1/4” - 2” Full Port Design
◈ Polyacetal Ball Seals (standard)
◈ NPT or SAE O-Ring connections
◈ Forged Housing - Sizes 32 - 50
◈ Carbon Steel Housing
◈ Block Housing - Sizes 06 - 25
◈ FPM (Fluoroelastomer) O-Rings (standard)
◈ Operating Pressure to 7250 psi Depending on Valve Size and Seal Materials Selected
◈ Temp Range: 14°F to 176°F with Standard materials up to max. pressure rating. Extended Temperature range -40°F to 392°F on request with special materials and reduced pressure rating.
◈ Small loss of flow resistance, reliable sealing performance, easy operation, exquisite appearance
